OPLA2BNNC1PA
ActiveAdam Tech
LC/APC ADAPTER, DUPLEX, SHORT-EA
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet

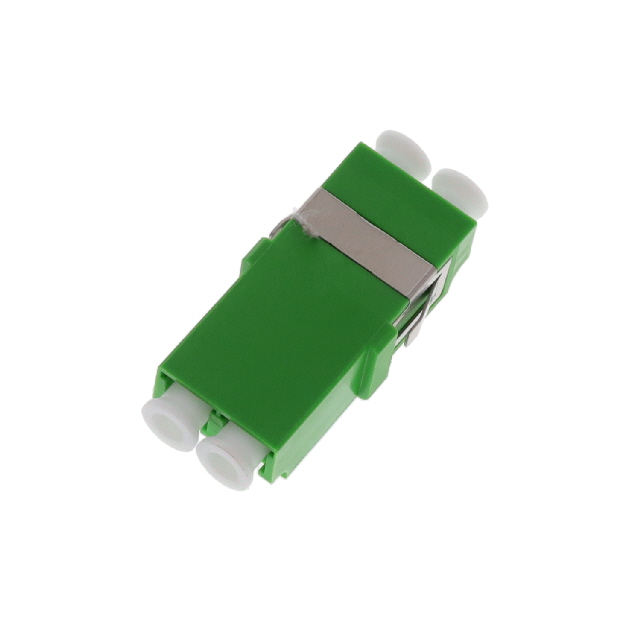

OPLA2BNNC1PA
ActiveAdam Tech
LC/APC ADAPTER, DUPLEX, SHORT-EA
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | OPLA2BNNC1PA |
|---|---|
| Color | Green |
| Convert From (Adapter End) | LC Receptacle |
| Convert To (Adapter End) | LC Receptacle |
| Ferrule Material | Ceramic, Zirconia |
| Housing Material | Polybutylene Terephthalate (PBT) |
| Material Flammability Rating | UL94 V-0 |
| Mounting Type | Panel Mount, Snap-In |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Simplex/Duplex | Duplex |
| Type | Coupler |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tray | 1 | $ 1.37 | |
| 10 | $ 1.05 | |||
| 25 | $ 0.94 | |||
| 50 | $ 0.87 | |||
| 100 | $ 0.80 | |||
| 250 | $ 0.73 | |||
| 450 | $ 0.68 | |||
| 950 | $ 0.63 | |||
| 2400 | $ 0.57 | |||
Description
General part information
OPLA2BNNC Series
Coupler Fiber Optic Connector LC Receptacle To LC Receptacle Panel Mount, Snap-In
Documents
Technical documentation and resources
