LZ7-04M2PD-0000

Obsolete

ams-OSRAM USA INC.

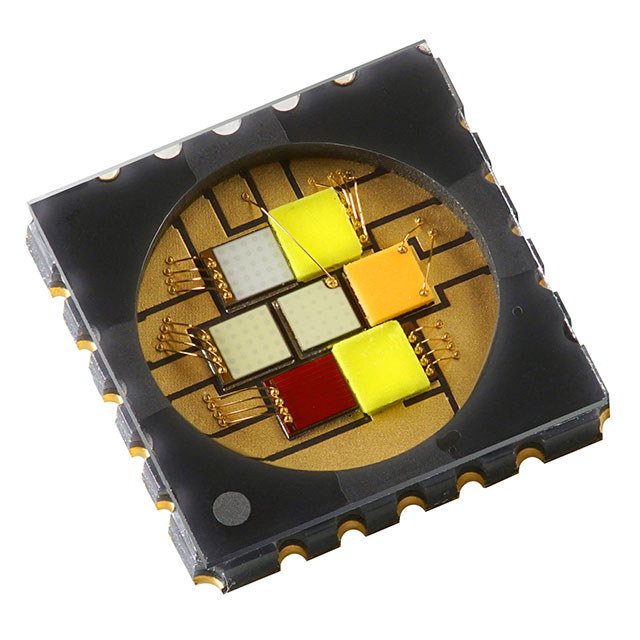

LED LZ7 6 COLOR 60W SMD

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

LZ7-04M2PD-0000

Obsolete

ams-OSRAM USA INC.

LED LZ7 6 COLOR 60W SMD

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	LZ7-04M2PD-0000

Color	Blue, Lime, Cyan, Red, Amber, Green
Current - Max	1A Cyan, 3A Green, 3A Blue, 1.5A Amber, 2.5A Lime, 2.5A Red
Current - Test	1A Lime, 1A Cyan, 1A Green, 1A Amber, 1A Blue, 1A Red
Lumens/Watt @ Current - Test [custom]	102 lm/W
Lumens/Watt @ Current - Test [custom]	41 lm/W
Lumens/Watt @ Current - Test [custom]	39 lm/W
Lumens/Watt @ Current - Test [custom]	42 lm/W
Lumens/Watt @ Current - Test [custom]	14 lm/W
Lumens/Watt @ Current - Test [custom]	51 lm/W
Luminous Flux @ Current/Temperature [custom]	140 lm
Luminous Flux @ Current/Temperature [custom]	135 lm
Luminous Flux @ Current/Temperature [custom]	620 lm
Luminous Flux @ Current/Temperature [custom]	95 lm
Luminous Flux @ Current/Temperature [custom]	180 lm
Luminous Flux @ Current/Temperature [custom]	42 lm
Mounting Type	Surface Mount
Size / Dimension [x]	0.276 "
Size / Dimension [x]	7 mm
Size / Dimension [y]	7 mm
Size / Dimension [y]	0.276 in
Supplier Device Package	SMD
Thermal Resistance of Package [custom]	0.8 °C/W
Viewing Angle	114 °
Voltage - Forward (Vf) (Typ)	3.55 V, 6.1 V, 3.3 V, 3.05 V, 3.45 V, 2.3 V
Wavelength	623nm Red, 590nm Amber, 500nm Cyan, 451nm Blue, 520nm Green

LZ7-04 Series

Part	Voltage - Forward (Vf) (Typ)	Lumens/Watt @ Current - Test [custom]	Lumens/Watt @ Current - Test [custom]	Lumens/Watt @ Current - Test [custom]	Lumens/Watt @ Current - Test [custom]	Lumens/Watt @ Current - Test [custom]	Lumens/Watt @ Current - Test [custom]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Mounting Type	Current - Max	Thermal Resistance of Package [custom]	Current - Test	Luminous Flux @ Current/Temperature [custom]	Luminous Flux @ Current/Temperature [custom]	Luminous Flux @ Current/Temperature [custom]	Luminous Flux @ Current/Temperature [custom]	Luminous Flux @ Current/Temperature [custom]	Luminous Flux @ Current/Temperature [custom]	Wavelength	Viewing Angle	Supplier Device Package	Color	Thermal Resistance of Package [diameter]	Lumens/Watt @ Current - Test [custom]	Current - Max	Luminous Flux @ Current/Temperature	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]
ams-OSRAM USA INC. LZ7-04M2PD-0000	2.3 V 3.05 V 3.3 V 3.45 V 3.55 V 6.1 V	102 lm/W	41 lm/W	39 lm/W	42 lm/W	14 lm/W	51 lm/W	7 mm	0.276 in	0.276 "	7 mm	Surface Mount	1.5A Amber 1A Cyan 2.5A Lime 2.5A Red 3A Blue 3A Green	0.8 °C/W	1A Amber 1A Blue 1A Cyan 1A Green 1A Lime 1A Red	140 lm	135 lm	620 lm	95 lm	180 lm	42 lm	451nm Blue 500nm Cyan 520nm Green 590nm Amber 623nm Red	114 °	SMD	Amber Blue Cyan Green Lime Red
ams-OSRAM USA INC. LZ7-04MU00-0000	2.5 V 3.3 V 3.3 V 3.3 V 3.45 V 3.7 V 3.7 V		47 lm/W	42 lm/W	42 lm/W	10 lm/W	51 lm/W	7 mm	0.276 in	0.276 "	7 mm	Surface Mount			700mA Amber 700mA Blue 700mA Cyan 700mA Green 700mA Red 700mA Violet 700mA White							395nm Violet 457nm Blue 500nm Cyan 525nm Green 624nm Red 6500K White	120 °	SMD	Amber Blue Cool Cyan Green Red Violet White	1.4 °C/W	90 lm/W	1 A 1 A 1 A 1.5 A 1.5 A 1.5 A 1.5 A	24 lm 83 lm 96 lm 101 lm 133 lm 208 lm 900 mW	0.044 "	1.11 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Description

General part information

LZ7-04 Series

LED Lighting Color LZ7 Amber, Blue, Cyan, Green, Lime, Red 590nm Amber, 451nm Blue, 500nm Cyan, 520nm Green, 623nm Red 2828 (7070 Metric)
