APG1005SYC-T

Active

Kingbright

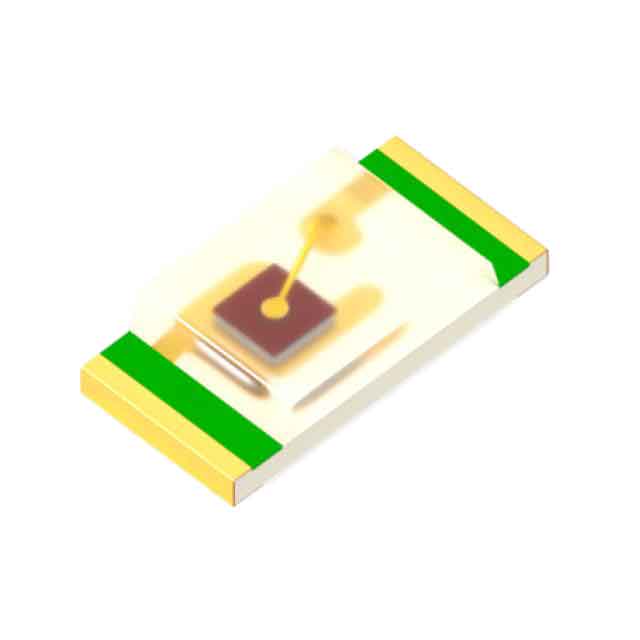

LED YELLOW CLEAR CHIP SMD

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

APG1005SYC-T

Active

Kingbright

LED YELLOW CLEAR CHIP SMD

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	APG1005SYC-T

Color	Yellow
Configuration	Standard
Current - Test	20 mA
Height (Max) [Max]	0.25 mm
Lens Color	Colorless
Lens Size [x]	0.6 mm
Lens Size [y]	0.5 mm
Lens Style	Rectangle with Flat Top
Lens Transparency	Clear
Millicandela Rating	100 mcd
Mounting Type	Surface Mount
Package / Case	0402 (1005 Metric)
Size / Dimension [x]	1 mm
Size / Dimension [y]	0.5 mm
Supplier Device Package	Chip LED
Viewing Angle	120 °
Voltage - Forward (Vf) (Typ)	2.05 V
Wavelength - Dominant	589 nm
Wavelength - Peak	591 nm

APG1005 Series

Part	Viewing Angle	Millicandela Rating	Supplier Device Package	Height (Max) [Max]	Lens Color	Size / Dimension [x]	Size / Dimension [y]	Lens Size [y]	Lens Size [x]	Wavelength - Peak	Wavelength - Dominant [custom]	Mounting Type	Current - Test	Configuration	Lens Style	Voltage - Forward (Vf) (Typ)	Color	Package / Case	Lens Transparency	Wavelength - Dominant
Kingbright APG1005VGC-T-5MAV	145 °	70 mcd	Chip LED	0.25 mm	Colorless	1 mm	0.5 mm	0.5 mm	0.6 mm	518 nm	527 nm	Surface Mount	5 mA	Standard	Rectangle with Flat Top	3 V	Green	0402 (1005 Metric)	Clear
Kingbright APG1005PBC-T-5MAV	145 °	28 mcd	Chip LED	0.25 mm	Colorless	1 mm	0.5 mm	0.5 mm	0.6 mm	461 nm		Surface Mount	5 mA	Standard	Rectangle with Flat Top	2.9 V	Blue	0402 (1005 Metric)	Clear	467 nm
Kingbright APG1005SYC-T	120 °	100 mcd	Chip LED	0.25 mm	Colorless	1 mm	0.5 mm	0.5 mm	0.6 mm	591 nm		Surface Mount	20 mA	Standard	Rectangle with Flat Top	2.05 V	Yellow	0402 (1005 Metric)	Clear	589 nm
Kingbright APG1005CGC-T	120 °	35 mcd	Chip LED	0.25 mm	Colorless	1 mm	0.5 mm	0.5 mm	0.6 mm	572 nm		Surface Mount	20 mA	Standard	Rectangle with Flat Top	2 V	Green	0402 (1005 Metric)	Clear	571 nm
Kingbright APG1005RWF-T-5MAV	120 °	85 mcd	Chip LED	0.25 mm	Yellow	1 mm	0.5 mm	0.5 mm	0.6 mm			Surface Mount	5 mA	Standard	Rectangle with Flat Top	2.9 V	White	0402 (1005 Metric)
Kingbright APG1005SEC/E-T	120 °	75 mcd	Chip LED	0.25 mm	Colorless	1 mm	0.5 mm	0.5 mm	0.6 mm	632 nm		Surface Mount	20 mA	Standard	Rectangle with Flat Top	2 V	Red	0402 (1005 Metric)	Clear	624 nm
Kingbright APG1005SEC-T	120 °	90 mcd	Chip LED	0.25 mm	Colorless	1 mm	0.5 mm	0.5 mm	0.6 mm	611 nm		Surface Mount	20 mA	Standard	Rectangle with Flat Top	2.05 V		0402 (1005 Metric)	Clear	605 nm
