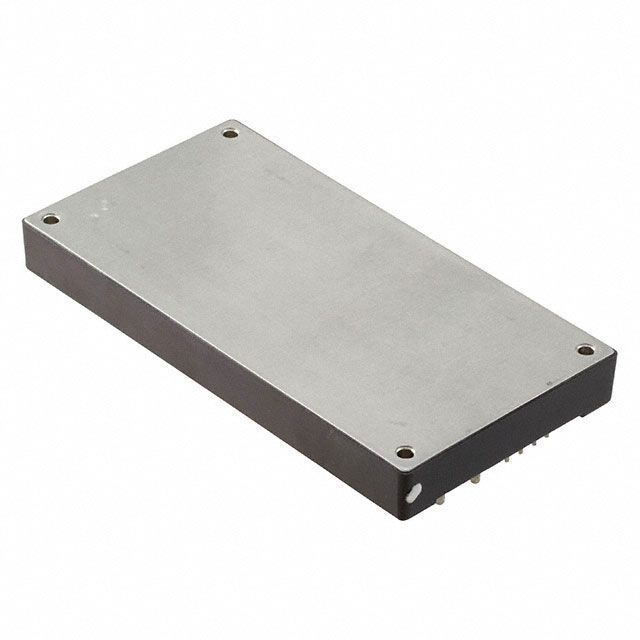

PFE500SA-28/T

Active

TDK-LAMBDA

AC/DC PCB MOUNT POWER SUPPLY (PSU), 1 OUTPUT, 504 W, 28 V, 18 A

Search across all available documentation for this part.

Active

TDK-LAMBDA

AC/DC PCB MOUNT POWER SUPPLY (PSU), 1 OUTPUT, 504 W, 28 V, 18 A

Technical Specifications

Parameters and characteristics for this part

Part	Power (Watts)	Line Regulation	Number of Outputs	Voltage - Input [Min]	Voltage - Input [Max]	Type	Mounting Type	Voltage - Output 1	Applications	Load Regulation	Package / Case	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [y]	Current - Output (Max) [Max]	Approval Agency	Weight	Weight	Standard Number	Operating Temperature [Min]	Operating Temperature [Max]	Efficiency
TDK-LAMBDA PFE500SA-28/T	504 W	56 mV	1	85 VAC	265 VAC	Enclosed	Through Hole	28 V	ITE (Commercial)	56 mV	11-DIP Module Full Brick	0.5 in	4.6 "	116.8 mm	12.7 mm	2.4 "	61 mm	18 A	CE CSA UL	200.03 g	0.441 lb	60950-1 62368-1	-40 °C	100 °C	89 %
TDK-LAMBDA PFE500F-48/T	500 W	96 mV	1	85 VAC	265 VAC	Enclosed	Through Hole	48 V	ITE (Commercial)	96 mV	17-DIP Module Full Brick	0.5 in	4.8 in	122 mm	12.7 mm	2.76 in	70 mm	10.5 A	CE cULus	300.28 g	0.662 lb	60950-1 62368-1	-40 °C	100 °C	86 %
TDK-LAMBDA PFE500SA-48	504 W	96 mV	1	85 VAC	265 VAC	Enclosed	Through Hole	48 V	ITE (Commercial)	96 mV	11-DIP Module Full Brick	0.5 in	4.6 "	116.8 mm	12.7 mm	2.4 "	61 mm	10.5 A	CE CSA UL	200.03 g	0.441 lb	60950-1 62368-1	-40 °C	100 °C	91 %

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Enclosed AC DC Converters 1 Output 28V 18A 85 ~ 265 VAC Input
