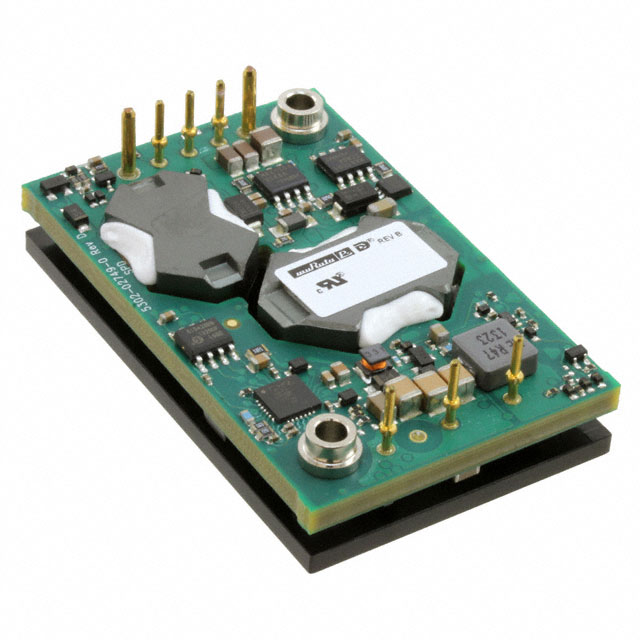

PAQ-29/5-D48NB3-C
ActiveMurata Power Solutions Inc.
DC DC CONVERTER 29.8V 150W
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
PAQ-29/5-D48NB3-C
ActiveMurata Power Solutions Inc.
DC DC CONVERTER 29.8V 150W
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | PAQ-29/5-D48NB3-C |
|---|---|
| Applications | ITE (Commercial) |
| Control Features | Active Low, Enable |
| Current - Output (Max) [Max] | 5 A |
| Efficiency | 92.5 % |
| Features | OVP, OCP, OTP, Remote On/Off |
| Mounting Type | Through Hole |
| Number of Outputs | 1 |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Package / Case | 9-DIP Module |
| Power (Watts) | 150 W |
| Size / Dimension [x] | 58.4 mm |
| Size / Dimension [x] | 2.3 in |
| Size / Dimension [y] | 1.45 in |
| Size / Dimension [y] | 36.8 mm |
| Size / Dimension [z] | 0.46 in |
| Size / Dimension [z] | 11.7 mm |
| Type | Isolated Module |
| Voltage - Input (Max) [Max] | 75 V |
| Voltage - Input (Min) [Min] | 36 V |
| Voltage - Isolation | 2250 VDC |
| Voltage - Output 1 | 29.8 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tray | 60 | $ 69.88 | |
Description
General part information
PAQ-29 Series
Isolated Module DC DC Converter 1 Output 29.8V 5A 36V - 75V Input
