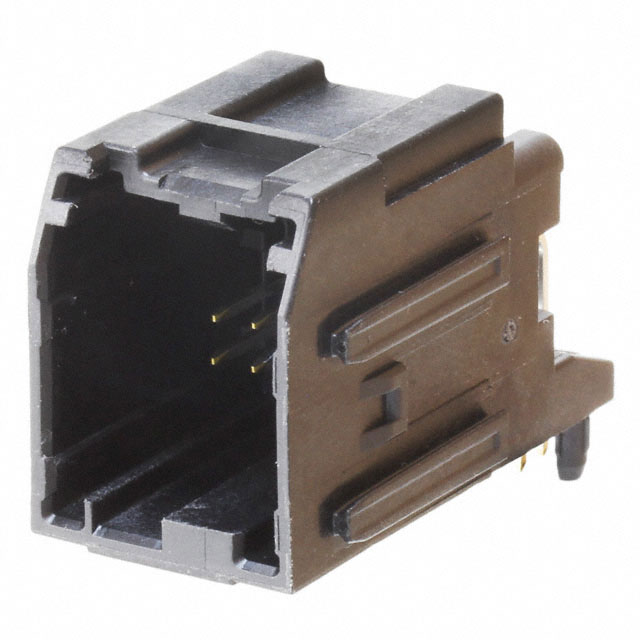

0346916080

Active

Molex

CONN HEADER R/A 8POS 2.54MM

Deep-Dive with AI

Search across all available documentation for this part.

0346916080

Active

Molex

CONN HEADER R/A 8POS 2.54MM

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	0346916080

Applications	Automotive
Connector Type	Header
Contact Finish - Post	Tin
Contact Length - Post	3.02 mm
Contact Length - Post	0.119 in
Contact Material	Cartridge Brass
Contact Shape	Square
Contact Type	Male Pin
Fastening Type	Latch Holder
Features	Board Guide
Insulation Color	Black
Insulation Height	22.05 mm
Insulation Height	0.868 in
Mounting Type	Through Hole, Right Angle
Number of Positions	8
Number of Positions Loaded	All
Number of Rows	2
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Pitch - Mating	0.1 in
Pitch - Mating	2.54 mm
Row Spacing - Mating [x]	2.54 mm
Row Spacing - Mating [x]	0.1 in
Shrouding	Shrouded - 4 Wall
Style	Board to Cable/Wire
Termination	Solder

034691 Series

Stac64 Right-Angle Header Assembly, Plastic Pin-Alignment-Plate, 20 Circuits, Polarization A, Black, Tube

Part	Number of Positions	Number of Rows	Insulation Color	Features	Termination	Contact Type	Applications	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Connector Type	Pitch - Mating	Pitch - Mating	Style	Contact Finish - Post	Contact Material	Shrouding	Contact Length - Post	Contact Length - Post	Operating Temperature [Min]	Operating Temperature [Max]	Contact Shape	Fastening Type	Insulation Height	Insulation Height	Mounting Type	Number of Positions Loaded	Number of Positions
Molex 0346916080	8	2	Black	Board Guide	Solder	Male Pin	Automotive	2.54 mm	0.1 in	Header	0.1 in	2.54 mm	Board to Cable/Wire	Tin	Cartridge Brass	Shrouded - 4 Wall	3.02 mm	0.119 in	-40 °C	105 ░C	Square	Latch Holder	22.05 mm	0.868 in	Through Hole Right Angle	All
Molex 0346910121	12	2	Gray	Board Guide	Solder	Male Pin	Automotive	2.54 mm	0.1 in	Header	0.1 in	2.54 mm	Board to Cable/Wire	Tin	Cartridge Brass	Shrouded - 4 Wall	3.02 mm	0.119 in	-40 °C	105 ░C	Square	Latch Holder	22.05 mm	0.868 in	Through Hole Right Angle	All
Molex 0346916161		2	Gray	Board Guide	Solder	Male Pin	Automotive	2.54 mm	0.1 in	Header	0.1 in	2.54 mm	Board to Cable/Wire	Tin	Cartridge Brass	Shrouded - 4 Wall	3.02 mm	0.119 in	-40 °C	105 ░C	Square	Latch Holder	22.05 mm	0.868 in	Through Hole Right Angle	All	16
Molex 0346916122	12	2	Brown	Board Guide	Solder	Male Pin	Automotive	2.54 mm	0.1 in	Header	0.1 in	2.54 mm	Board to Cable/Wire	Tin	Cartridge Brass	Shrouded - 4 Wall	3.02 mm	0.119 in	-40 °C	105 ░C	Square	Latch Holder	22.05 mm	0.868 in	Through Hole Right Angle	All
Molex 0346910202	20	2	Brown	Board Guide	Solder	Male Pin	Automotive	2.54 mm	0.1 in	Header	0.1 in	2.54 mm	Board to Cable/Wire	Tin	Cartridge Brass	Shrouded - 4 Wall	3.02 mm	0.119 in	-40 °C	105 ░C	Square	Latch Holder	22.05 mm	0.868 in	Through Hole Right Angle	All
Molex 0346910203	20	2	Green	Board Guide	Solder	Male Pin	Automotive	2.54 mm	0.1 in	Header	0.1 in	2.54 mm	Board to Cable/Wire	Tin	Cartridge Brass	Shrouded - 4 Wall	3.02 mm	0.119 in	-40 °C	105 ░C	Square	Latch Holder	22.05 mm	0.868 in	Through Hole Right Angle	All
Molex 0346916203	20	2	Green	Board Guide	Solder	Male Pin	Automotive	2.54 mm	0.1 in	Header	0.1 in	2.54 mm	Board to Cable/Wire	Tin	Cartridge Brass	Shrouded - 4 Wall	3.02 mm	0.119 in	-40 °C	105 ░C	Square	Latch Holder	22.05 mm	0.868 in	Through Hole Right Angle	All
Molex 0346910122	12	2	Brown	Board Guide	Solder	Male Pin	Automotive	2.54 mm	0.1 in	Header	0.1 in	2.54 mm	Board to Cable/Wire	Tin	Cartridge Brass	Shrouded - 4 Wall	3.02 mm	0.119 in	-40 °C	105 ░C	Square	Latch Holder	22.05 mm	0.868 in	Through Hole Right Angle	All
Molex 0346910082	8	2	Brown	Board Guide	Solder	Male Pin	Automotive	2.54 mm	0.1 in	Header	0.1 in	2.54 mm	Board to Cable/Wire	Tin	Cartridge Brass	Shrouded - 4 Wall	3.02 mm	0.119 in	-40 °C	105 ░C	Square	Latch Holder	22.05 mm	0.868 in	Through Hole Right Angle	All
Molex 0346916121	12	2	Gray	Board Guide	Solder	Male Pin	Automotive	2.54 mm	0.1 in	Header	0.1 in	2.54 mm	Board to Cable/Wire	Tin	Cartridge Brass	Shrouded - 4 Wall	3.02 mm	0.119 in	-40 °C	105 ░C	Square	Latch Holder	22.05 mm	0.868 in	Through Hole Right Angle	All
