A13418-01
ActiveLaird Technologies - Thermal Materials

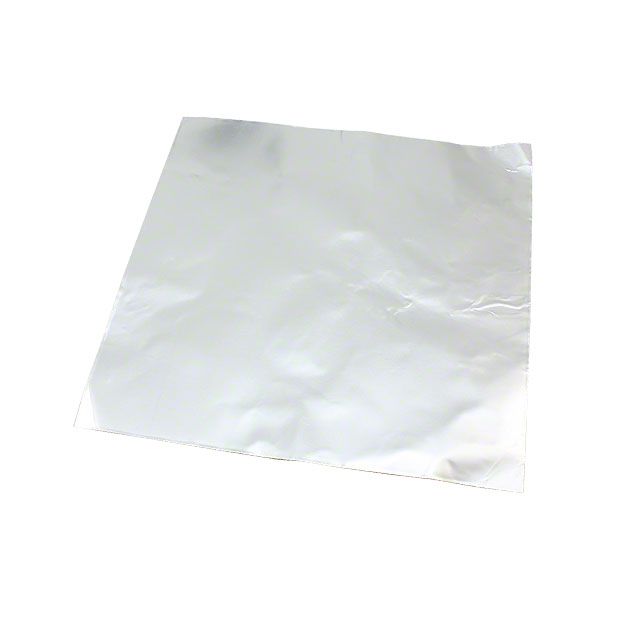

THERM PAD 228.6X228.6MM SIL/YLW
Deep-Dive with AI
Search across all available documentation for this part.
A13418-01
ActiveLaird Technologies - Thermal Materials
THERM PAD 228.6X228.6MM SIL/YLW
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | A13418-01 |
|---|---|
| Adhesive | Tacky - Both Sides |
| Material | Boron Nitride Filled |
| Outline [x] | 228.6 mm |
| Outline [y] | 228.6 mm |
| Shape | Square |
| Shelf Life | 12 Months |
| Shelf Life Start | Date of Shipment |
| Thermal Resistivity | 0.07 °C/W |
| Thickness [x] | 0.005 in |
| Thickness [x] | 0.127 mm |
| Type | Phase Change Pad, Sheet |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 36.61 | |
| 10 | $ 34.45 | |||
| 25 | $ 32.30 | |||
| 50 | $ 30.15 | |||
| 100 | $ 29.07 | |||
| 250 | $ 27.45 | |||
Description
General part information
A13418 Series
Thermal Pad Silver, Yellow 228.60mm x 228.60mm Square Tacky - Both Sides
