CSHD10-45L TR13 PBFREE
ActiveCentral Semiconductor Corp
DIODE SCHOTTKY 45V 10A DPAK
Deep-Dive with AI
Search across all available documentation for this part.
CSHD10-45L TR13 PBFREE
ActiveCentral Semiconductor Corp
DIODE SCHOTTKY 45V 10A DPAK
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | CSHD10-45L TR13 PBFREE |
|---|---|
| Current - Average Rectified (Io) | 10 A |
| Current - Reverse Leakage @ Vr | 100 µA |
| Mounting Type | Surface Mount |
| Operating Temperature - Junction [Max] | 150 °C |
| Operating Temperature - Junction [Min] | -65 C |

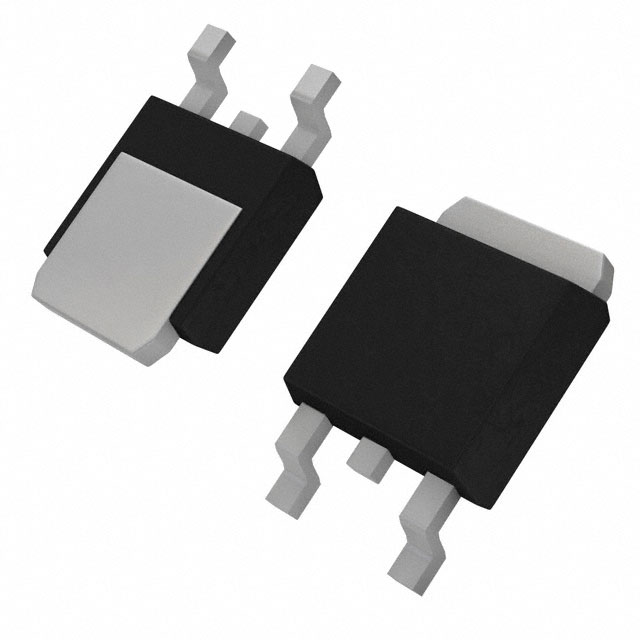

| Package / Case | SC-63, DPAK (2 Leads + Tab), TO-252-3 |
| Speed | 200 mA, 500 ns |
| Supplier Device Package | DPAK |
| Technology | Schottky |
| Voltage - DC Reverse (Vr) (Max) [Max] | 45 V |
| Voltage - Forward (Vf) (Max) @ If | 750 mV |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 0.92 | |
| 10 | $ 0.80 | |||
| 100 | $ 0.55 | |||
| 500 | $ 0.46 | |||
| 1000 | $ 0.39 | |||
| Digi-Reel® | 1 | $ 0.92 | ||
| 10 | $ 0.80 | |||
| 100 | $ 0.55 | |||
| 500 | $ 0.46 | |||
| 1000 | $ 0.39 | |||
| Tape & Reel (TR) | 2500 | $ 0.36 | ||
| 5000 | $ 0.33 | |||
| 7500 | $ 0.32 | |||
| 12500 | $ 0.30 | |||
Description
General part information
CSHD10 Series
Diode 45 V 10A Surface Mount DPAK
Documents
Technical documentation and resources
No documents available
