305-042-520-503
ActiveEDAC Inc.

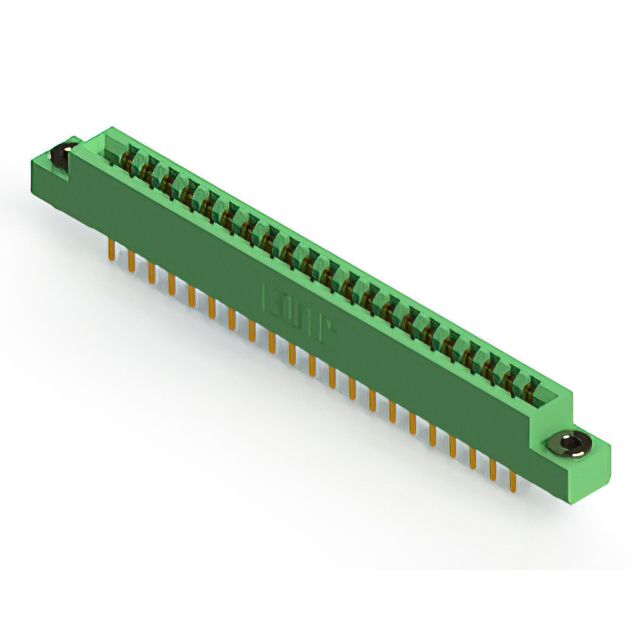

CARD EDGE CONNECTOR, DUAL SIDE, 1.57 MM, 42 CONTACTS, THROUGH HOLE MOUNT, STRAIGHT
Deep-Dive with AI
Search across all available documentation for this part.
305-042-520-503
ActiveEDAC Inc.
CARD EDGE CONNECTOR, DUAL SIDE, 1.57 MM, 42 CONTACTS, THROUGH HOLE MOUNT, STRAIGHT
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 305-042-520-503 |
|---|---|
| Card Thickness [Max] | 1.78 mm |
| Card Thickness [Max] | 0.07 in |
| Card Thickness [Min] | 1.37 mm |
| Card Thickness [Min] | 0.054 " |
| Card Type | Non Specified - Dual Edge |
| Color | Green |
| Contact Finish | Gold |
| Contact Finish Thickness | 10 Áin |
| Contact Finish Thickness | 0.25 Ám |
| Contact Material | Copper Alloy |
| Contact Type | Semi Bellows |
| Flange Feature | Floating Bobbin, Flush Mount |
| Flange Feature [diameter] | 0.116 in |
| Flange Feature [diameter] | 2.95 mm |
| Gender | Female |
| Material - Insulation | Polyester Thermoplastic |
| Mounting Type | Through Hole, Panel Mount |
| Number of Positions | 42 |
| Number of Rows | 2 |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -40 °C |
| Pitch [x] | 0.156 in |
| Pitch [x] | 3.96 mm |
| Read Out | Dual |
| Termination | Solder |
| Termination Rows | 2 |
305-042 Series
| Part | Gender | Termination | Contact Finish | Number of Positions | Pitch [x] | Pitch [x] | Card Type | Contact Type | Flange Feature [diameter] | Flange Feature [diameter] | Flange Feature | Material - Insulation | Operating Temperature [Min] | Operating Temperature [Max] | Number of Rows | Contact Finish Thickness | Contact Finish Thickness | Contact Material | Color | Read Out | Termination Rows | Card Thickness [Min] | Card Thickness [Min] | Card Thickness [Max] | Card Thickness [Max] | Features | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
EDAC Inc. | Female | Solder Eyelet(s) | Gold | 42 | 0.156 in | 3.96 mm | Non Specified - Dual Edge | Semi Bellows | 3.25 mm | 0.128 " | Flush Mount Top Opening Unthreaded | Polyester Thermoplastic | -40 °C | 105 ░C | 2 | 10 Áin | 0.25 Ám | Copper Alloy | Green | Dual | 2 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | ||
EDAC Inc. | Female | Solder | Gold | 42 | 0.156 in | 3.96 mm | Non Specified - Dual Edge | Semi Bellows | Flush Mount M3 Threaded Insert Top Opening | Polyester Thermoplastic | -40 °C | 105 ░C | 2 | 10 Áin | 0.25 Ám | Copper Alloy | Green | Dual | 2 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Card Extender | Board Edge Straddle Mount | ||
EDAC Inc. | Female | Solder | Gold | 42 | 0.156 in | 3.96 mm | Non Specified - Dual Edge | Semi Bellows | 4-40 Flush Mount Threaded Insert Top Opening | Polyester Thermoplastic | -40 °C | 105 ░C | 2 | 10 Áin | 0.25 Ám | Copper Alloy | Green | Dual | 2 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Panel Mount Through Hole | |||
EDAC Inc. | Female | Solder | Gold | 42 | 0.156 in | 3.96 mm | Non Specified - Dual Edge | Semi Bellows | 3.96 mm | 0.156 in | Flush Mount Top Opening Unthreaded | Polyester Thermoplastic | -40 °C | 105 ░C | 2 | 10 Áin | 0.25 Ám | Copper Alloy | Green | Dual | 2 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Card Extender | Board Edge Straddle Mount |
EDAC Inc. | Female | Solder Eyelet(s) | Gold | 42 | 0.156 in | 3.96 mm | Non Specified - Dual Edge | Semi Bellows | Flush Mount M3 Threaded Insert Top Opening | Polyester Thermoplastic | -40 °C | 105 ░C | 2 | 10 Áin | 0.25 Ám | Copper Alloy | Green | Dual | 2 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | ||||
EDAC Inc. | Female | Solder | Gold | 42 | 0.156 in | 3.96 mm | Non Specified - Dual Edge | Semi Bellows | 4-40 Flush Mount Threaded Insert Top Opening | Polyester Thermoplastic | -40 °C | 105 ░C | 2 | 10 Áin | 0.25 Ám | Copper Alloy | Green | Dual | 2 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Board Edge Straddle Mount | |||
EDAC Inc. | Female | Solder | Gold | 42 | 0.156 in | 3.96 mm | Non Specified - Dual Edge | Semi Bellows | 4-40 Flush Mount Threaded Insert Top Opening | Polyester Thermoplastic | -40 °C | 105 ░C | 2 | 10 Áin | 0.25 Ám | Copper Alloy | Green | Dual | 2 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Panel Mount Through Hole | |||
EDAC Inc. | Female | Solder Eyelet(s) | Gold | 42 | 0.156 in | 3.96 mm | Non Specified - Dual Edge | Semi Bellows | 2.95 mm | 0.116 in | Floating Bobbin Flush Mount | Polyester Thermoplastic | -40 °C | 105 ░C | 2 | 10 Áin | 0.25 Ám | Copper Alloy | Green | Dual | 2 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | ||
EDAC Inc. | Female | Solder | Gold | 42 | 0.156 in | 3.96 mm | Non Specified - Dual Edge | Semi Bellows | 2.95 mm | 0.116 in | Floating Bobbin Flush Mount | Polyester Thermoplastic | -40 °C | 105 ░C | 2 | 10 Áin | 0.25 Ám | Copper Alloy | Green | Dual | 2 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Panel Mount Through Hole | |
EDAC Inc. | Female | Solder | Gold | 42 | 0.156 in | 3.96 mm | Non Specified - Dual Edge | Semi Bellows | 2.95 mm | 0.116 in | Floating Bobbin Flush Mount | Polyester Thermoplastic | -40 °C | 105 ░C | 2 | 10 Áin | 0.25 Ám | Copper Alloy | Green | Dual | 2 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Panel Mount Through Hole |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
305-042 Series
42 Position Female Connector Non Specified - Dual Edge Gold 0.156" (3.96mm) Green
