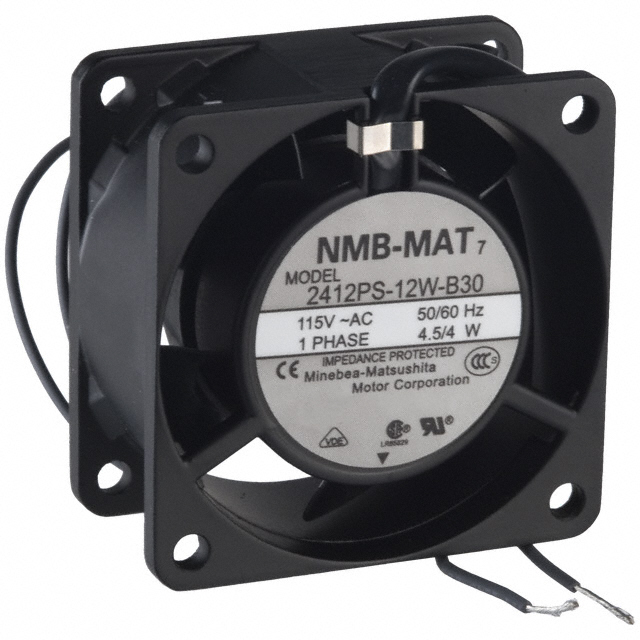

2412PS-12W-B30-A00

Obsolete

NMB TECHNOLOGIES

FAN AXIAL 60X30MM 115VAC WIRE

Search across all available documentation for this part.

Obsolete

NMB TECHNOLOGIES

FAN AXIAL 60X30MM 115VAC WIRE

Technical Specifications

Parameters and characteristics for this part

Specification	2412PS-12W-B30-A00

Air Flow	0.255 mł/min
Air Flow	9.1 CFM
Approval Agency	UL, CE, VDE, CSA
Bearing Type	Ball
Current Rating (Amps)	60 mA
Fan Type	Tubeaxial
Lifetime @ Temp.	50000 Hrs
Material - Blade	Polycarbonate (PC), Fiberglass Reinforced
Material - Frame	Aluminum
Noise	29 dB(A)
Operating Temperature [Max]	70 °C
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-10 °C
Operating Temperature [Min]	-10 °C
RPM	2600 RPM
Size / Dimension [x]	60 mm
Size / Dimension [y]	60 mm
Static Pressure	22.5 Pa
Static Pressure	0.09 in H2O
Termination	2 Wire Leads
Voltage - Rated	115 VAC
Weight	136.08 g
Weight	0.3 lb
Width [y]	30 mm

Part	Noise	Voltage - Rated	Fan Type	Approval Agency	RPM	Weight	Weight	Material - Blade	Current Rating (Amps)	Width [y]	Material - Frame	Size / Dimension [x]	Size / Dimension [y]	Lifetime @ Temp.	Air Flow	Air Flow	Static Pressure	Static Pressure	Bearing Type	Operating Temperature [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Operating Temperature [Min]	Termination
NMB TECHNOLOGIES 2412PS-12W-B30-A00	29 dB(A)	115 VAC	Tubeaxial	CE CSA UL VDE	2600 RPM	136.08 g	0.3 lb	Fiberglass Reinforced Polycarbonate (PC)	60 mA	30 mm	Aluminum	60 mm	60 mm	50000 Hrs	0.255 mł/min	9.1 CFM	22.5 Pa	0.09 in H2O	Ball	70 °C	70 °C	-10 °C	-10 °C	2 Wire Leads

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Fan Tubeaxial 115VAC Square - 60mm L x 60mm H Ball 9.1 CFM (0.255mł/min) 2 Wire Leads
