M300-MC20605M1-0450L

Active

Harwin Inc.

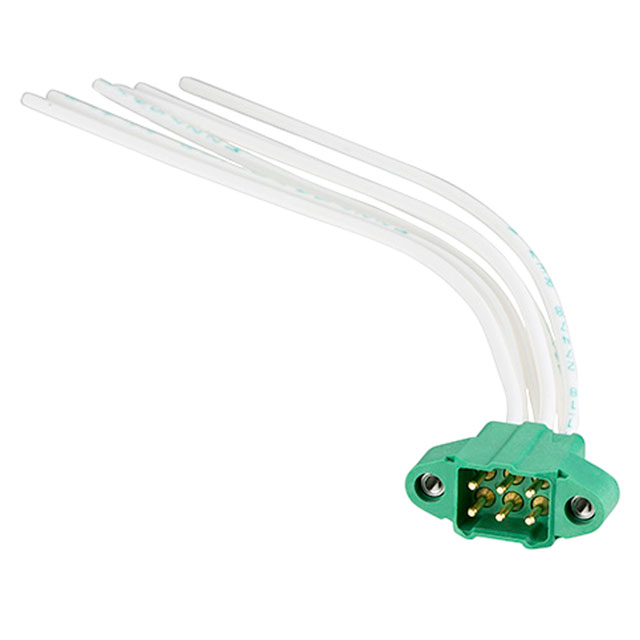

3+3 POS. MALE DIL 20AWG CABLE ASSEMBLY, 450MM, SINGLE-END, JACKSCREWS

Search across all available documentation for this part.

Active

Harwin Inc.

3+3 POS. MALE DIL 20AWG CABLE ASSEMBLY, 450MM, SINGLE-END, JACKSCREWS

Technical Specifications

Parameters and characteristics for this part

Specification	M300-MC20605M1-0450L

Cable Termination	Crimp
Connector Type	Plug to Individual Wire Leads
Contact Finish	Gold
Contact Finish Thickness	5.9 µin
Contact Finish Thickness	0.15 µm
Features	Mating Flange, Polarizing Key
Length [x]	17.76 in
Length [x]	450 mm
Number of Positions	6
Number of Rows	2
Pitch - Connector	0.118 in
Pitch - Connector	3 mm
Shielding	Unshielded

Part	Connector Type	Contact Finish Thickness	Contact Finish Thickness	Number of Positions	Cable Termination	Features	Number of Rows	Length [x]	Length [x]	Length [x]	Pitch - Connector	Pitch - Connector	Shielding	Contact Finish	Length	Length	Length
Harwin Inc. M300-MC21005M1-0300L	Plug to Individual Wire Leads	0.15 µm	5.9 µin	10	Crimp	Mating Flange Polarizing Key	2	0.984 '	11.81 "	300 mm	0.118 in	3 mm	Unshielded	Gold
Harwin Inc. M300-MC20605M1-0300L	Plug to Individual Wire Leads	0.15 µm	5.9 µin	6	Crimp	Mating Flange Polarizing Key	2	0.984 '	11.81 "	300 mm	0.118 in	3 mm	Unshielded	Gold
Harwin Inc. M300-MC20605M1-0150L	Plug to Individual Wire Leads	0.15 µm	5.9 µin	6	Crimp	Mating Flange Polarizing Key	2				0.118 in	3 mm	Unshielded	Gold	150 mm	5.91 "	0.492 ft
Harwin Inc. M300-MC20605M1-0450L	Plug to Individual Wire Leads	0.15 µm	5.9 µin	6	Crimp	Mating Flange Polarizing Key	2	17.76 in		450 mm	0.118 in	3 mm	Unshielded	Gold

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	100	$ 28.62
Newark	Each	100	$ 34.59
		250	$ 33.42

General part information

6 Position Cable Assembly Rectangular Plug to Individual Wire Leads 1.48' (450.00mm)
