0150160427

Active

Molex

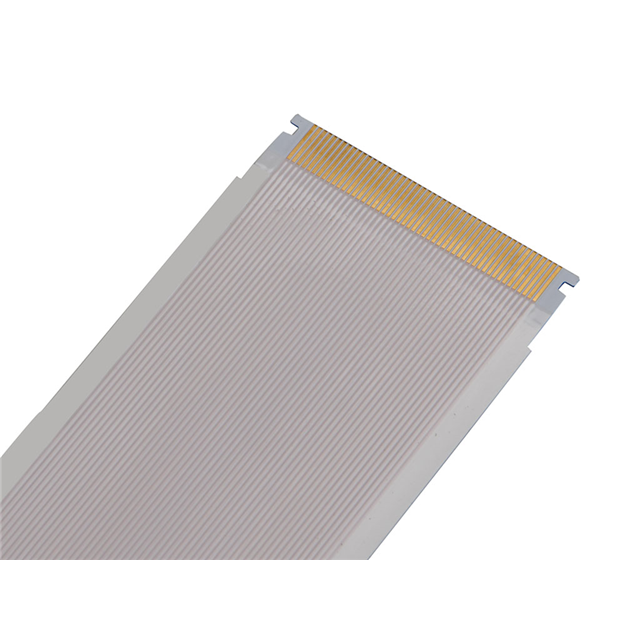

CABLE FFC/FPC 40POS 0.5MM 2"

Search across all available documentation for this part.

Active

Molex

CABLE FFC/FPC 40POS 0.5MM 2"

Technical Specifications

Parameters and characteristics for this part

Specification	0150160427

Cable Type	FPC, FFC
Length	50.8 mm
Length	2 in
Length - Exposed Ends [x]	3.9 mm
Length - Exposed Ends [x]	0.154 in
Number of Conductors	40
Pitch [x]	0.5 mm
Pitch [x]	0.02 in
Termination Style	Backers on Both Sides, Top on Both Sides

Part	Pitch [x]	Pitch [x]	Length - Exposed Ends [x]	Length - Exposed Ends [x]	Length	Length	Termination Style	Cable Type	Number of Conductors
Molex 0150160871	0.5 mm	0.02 in	3.9 mm	0.154 in	4 in	101.6 mm	Backers on Both Sides Top on Both Sides	FFC FPC	80
Molex 0150160765	0.5 mm	0.02 in	3.9 mm	0.154 in	6 in	152.4 mm	Backers on Both Sides Top on Both Sides	FFC FPC	70
Molex 0150161059	0.5 mm	0.02 in	3.9 mm	0.154 in	4 in	101.6 mm	Backers on Both Sides Top on Both Sides	FFC FPC	35
Molex 0150160325	0.5 mm	0.02 in	3.9 mm	0.154 in	6 in	152.4 mm	Backers on Both Sides Top on Both Sides	FFC FPC	30
Molex 0150160222	0.5 mm	0.02 in	3.9 mm	0.154 in	9 "	228.6 mm	Top on One Side Bottom on Other Backers on Both Sides	FFC FPC	20
Molex 0150160647	0.5 mm	0.02 in	3.9 mm	0.154 in	2 in	50.8 mm	Backers on Both Sides Top on Both Sides	FFC FPC	60
Molex 0150160427	0.5 mm	0.02 in	3.9 mm	0.154 in	2 in	50.8 mm	Backers on Both Sides Top on Both Sides	FFC FPC	40
Molex 0150160215	0.5 mm	0.02 in	3.9 mm	0.154 in	6 in	152.4 mm	Backers on Both Sides Top on Both Sides	FFC FPC	20
Molex 0150160867	0.5 mm	0.02 in	3.9 mm	0.154 in	2 in	50.8 mm	Backers on Both Sides Top on Both Sides	FFC FPC	80
Molex 0150161063	0.5 mm	0.02 in	3.9 mm	0.154 in	6 in	152.4 mm	Backers on Both Sides Top on Both Sides	FFC FPC	35

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

40 Position FFC, FPC Cable 0.020" (0.50mm) 2.000" (50.80mm)

Technical documentation and resources

No documents available
