EC0923-000

Active

TE Connectivity Raychem Cable Protection

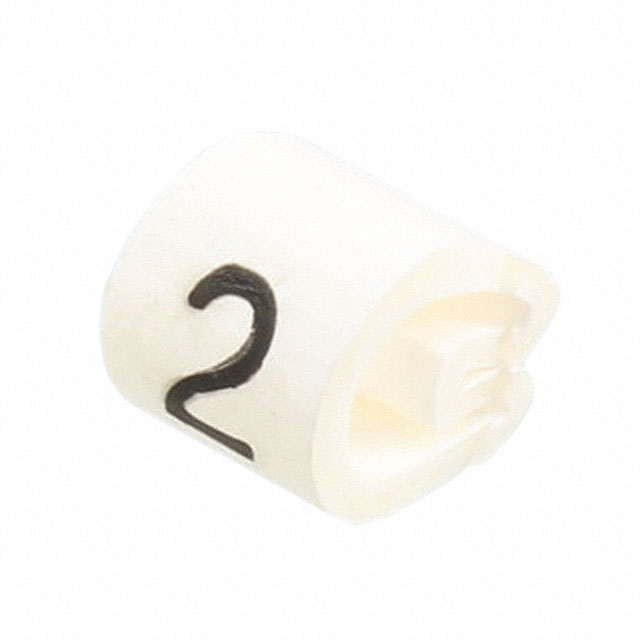

WIRE MARKER PUSH ON 4.5MM WHITE

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

EC0923-000

Active

TE Connectivity Raychem Cable Protection

WIRE MARKER PUSH ON 4.5MM WHITE

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	EC0923-000

Cable Diameter [Max] [diameter]	5.7 mm
Cable Diameter [Max] [diameter]	0.224 in
Cable Diameter [Min] [diameter]	0.134 in
Cable Diameter [Min] [diameter]	3.4 mm
Color	White
Legend	2
Material	Poly-Vinyl Chloride (PVC)
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-45 °C
Size [x]	0.18 in
Size [x]	4.5 mm
Type	Wire Marker, Push On

Z-Type Marker Series

Part	Material	Color	Operating Temperature [Min]	Operating Temperature [Max]	Type	Cable Diameter [Max] [diameter]	Cable Diameter [Min] [diameter]	Cable Diameter [Min] [diameter]	Cable Diameter [Max] [diameter]	Size [x]	Size [x]	Legend	Cable Diameter [Max] [diameter]	Legend
TE Connectivity Raychem Cable Protection EC0934-000	Poly-Vinyl Chloride (PVC)	White	-45 °C	70 °C	Wire Marker Push On	5.7 mm	0.134 in	3.4 mm	0.224 in	0.18 in	4.5 mm	D
TE Connectivity Raychem Cable Protection EC0929-000	Poly-Vinyl Chloride (PVC)	White	-45 °C	70 °C	Wire Marker Push On	5.7 mm	0.134 in	3.4 mm	0.224 in	0.18 in	4.5 mm	8
TE Connectivity Raychem Cable Protection EC0953-000	Poly-Vinyl Chloride (PVC)	White	-45 °C	70 °C	Wire Marker Push On	5.7 mm	0.134 in	3.4 mm	0.224 in	0.18 in	4.5 mm	W
TE Connectivity Raychem Cable Protection EC0912-000	Poly-Vinyl Chloride (PVC)	Yellow	-45 °C	70 °C	Wire Marker Push On	5.7 mm	0.134 in	3.4 mm	0.224 in	0.18 in	4.5 mm	Earth Symbol
TE Connectivity Raychem Cable Protection EC0922-000	Poly-Vinyl Chloride (PVC)	White	-45 °C	70 °C	Wire Marker Push On	5.7 mm	0.134 in	3.4 mm	0.224 in	0.18 in	4.5 mm	1
TE Connectivity Raychem Cable Protection EC0923-000	Poly-Vinyl Chloride (PVC)	White	-45 °C	70 °C	Wire Marker Push On	5.7 mm	0.134 in	3.4 mm	0.224 in	0.18 in	4.5 mm	2
TE Connectivity Raychem Cable Protection EC0935-000	Poly-Vinyl Chloride (PVC)	White	-45 °C	70 °C	Wire Marker Push On	5.7 mm	0.134 in	3.4 mm	0.224 in	0.18 in	4.5 mm
TE Connectivity Raychem Cable Protection EC0583-000	Poly-Vinyl Chloride (PVC)	White	-45 °C	70 °C	Wire Marker Push On		0.114 in	2.9 mm	0.185 in	0.18 in	4.5 mm	1	4.7 mm
TE Connectivity Raychem Cable Protection EC0940-000	Poly-Vinyl Chloride (PVC)	White	-45 °C	70 °C	Wire Marker Push On	5.7 mm	0.134 in	3.4 mm	0.224 in	0.18 in	4.5 mm	J
TE Connectivity Raychem Cable Protection EC0926-000	Poly-Vinyl Chloride (PVC)	White	-45 °C	70 °C	Wire Marker Push On	5.7 mm	0.134 in	3.4 mm	0.224 in	0.18 in	4.5 mm			5

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Cut Tape (CT)	1	$ 0.10
	Spool	10000	$ 0.02

Description

General part information

Z-Type Marker Series

Wire Marker, Push On 0.18" L (4.5mm) White Poly-Vinyl Chloride (PVC)
