Active

Amphenol SV Microwave

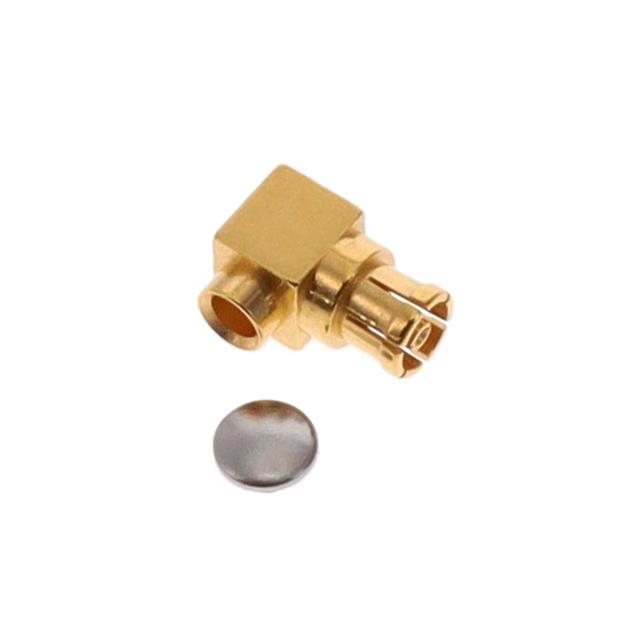

CONN SMPM JACK R/A 50OHM SOLDER

Search across all available documentation for this part.

Active

Amphenol SV Microwave

CONN SMPM JACK R/A 50OHM SOLDER

Technical Specifications

Parameters and characteristics for this part

Specification	3269-4001

Body Finish	Gold
Body Material	Beryllium Copper
Cable Group	Flexible
Cable Group	0.047 in
Center Contact Material	Beryllium Copper
Center Contact Plating	Gold
Connector Style	SMPM
Connector Type	Female Socket, Jack
Contact Termination	Solder
Dielectric Material	Polytetrafluoroethylene (PTFE)
Fastening Type	Snap-On
Frequency - Max [Max]	20 GHz
Housing Color	Gold
Impedance	50 Ohms
Mounting Type	Free Hanging (In-Line), Right Angle
Number of Ports	1
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Shield Termination	Solder

Part	Contact Termination	Frequency - Max [Max]	Shield Termination	Dielectric Material	Operating Temperature [Min]	Operating Temperature [Max]	Body Material	Cable Group	Cable Group	Connector Type	Mounting Type	Connector Style	Impedance	Center Contact Material	Fastening Type	Body Finish	Housing Color	Number of Ports	Center Contact Plating
Amphenol SV Microwave 3269-4001	Solder	20 GHz	Solder	Polytetrafluoroethylene (PTFE)	-55 °C	125 °C	Beryllium Copper	Flexible	0.047 in	Female Socket Jack	Free Hanging (In-Line) Right Angle	SMPM	50 Ohms	Beryllium Copper	Snap-On	Gold	Gold	1	Gold

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

SMPM Connector Jack, Female Socket 50 Ohms Free Hanging (In-Line), Right Angle Solder
