7950001-601

Laird Thermal Systems, Inc.

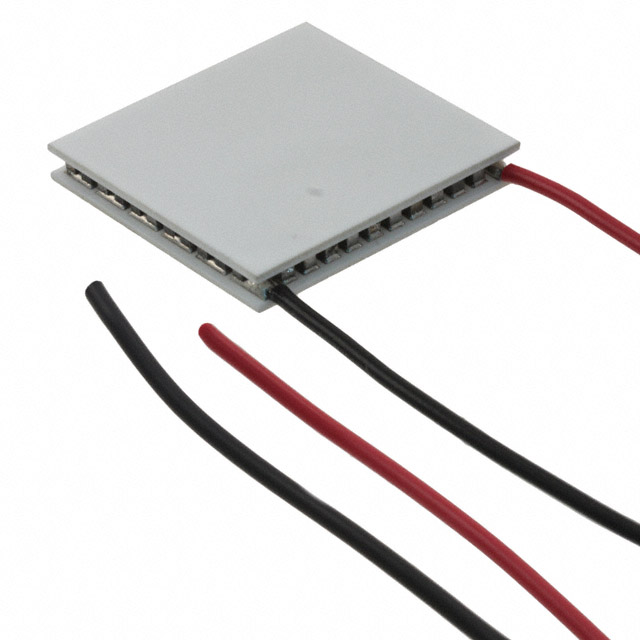

PELTIER MOD ZT6,7,F1,3030,TA,W8

Search across all available documentation for this part.

Laird Thermal Systems, Inc.

PELTIER MOD ZT6,7,F1,3030,TA,W8

Technical Specifications

Parameters and characteristics for this part

Part	Features	Resistance	Current - Max [Max]	Qmax @ Th	Size / Dimension [x]	Size / Dimension [y]	Delta Tmax @ Th	Voltage - Max [Max]	Number of Stages	Operating Temperature	Height [z]
Laird Thermal Systems, Inc. 7950001-601	Lead Wires Non-Sealed	1.23 Ohms	6 A	31 W	30 mm	30 mm	74 °C	8.6 V	1	80 °C	3.91 mm
Laird Thermal Systems, Inc. 7950001-602	Lead Wires Sealed - Silicone RTV	1.23 Ohms	6 A	31 W	30 mm	30 mm	74 °C	8.6 V	1	80 °C	3.91 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 37.25

General part information

Peltier Module 31.0W @ 25°C 6 A 80°C
