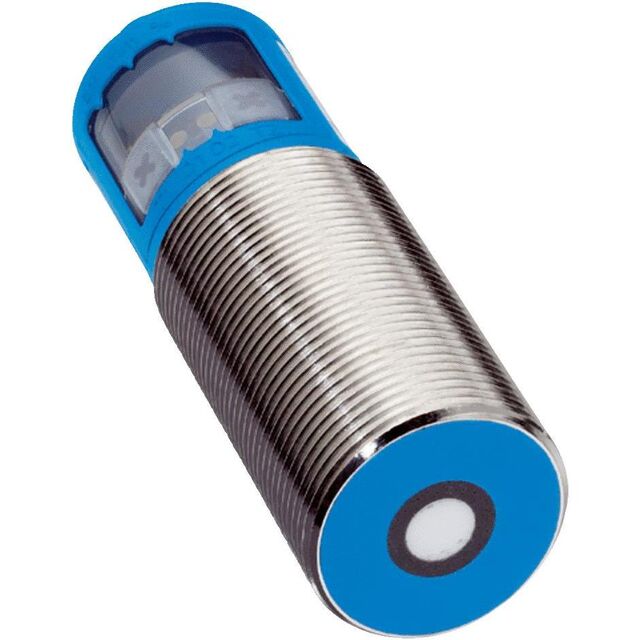

6037670

Active

SICK, Inc.

SENSOR PROX ULTRASN 65-350MM CYL

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

6037670

Active

SICK, Inc.

SENSOR PROX ULTRASN 65-350MM CYL

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	6037670

Indicator [custom]	LED
Ingress Protection	IP67
Material - Body	Nickel-Plated Brass, Polybutylene Terephthalate (PBT)
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-25 °C
Output Type	NPN
Package / Case	Cylinder, Threaded - M30
Response Frequency	12 Hz
Sensing Distance [Max]	13.78 "
Sensing Distance [Max]	350 mm
Sensing Distance [Min]	2.559 in
Sensing Distance [Min]	65 mm
Sensor Type	Ultrasonic
Termination Style	Connector
Voltage - Supply [Max]	30 VDC
Voltage - Supply [Min]	9 V

UM30 Series

Part	Response Frequency	Ingress Protection	Output Type	Material - Body	Sensing Distance [Max]	Sensing Distance [Min]	Sensing Distance [Max]	Sensing Distance [Min]	Indicator [custom]	Sensor Type	Termination Style	Voltage - Supply [Max]	Voltage - Supply [Min]	Package / Case	Operating Temperature [Max]	Operating Temperature [Min]	Sensing Distance	Sensing Distance
SICK, Inc. 6037666	8 Hz	IP67	PNP	Nickel-Plated Brass Polybutylene Terephthalate (PBT)	1300 mm	20 cm	51.181 "	7.874 "	LED	Ultrasonic	Connector	30 VDC	9 V	Cylinder Threaded - M30	70 °C	-25 °C
SICK, Inc. UM30-215115	3 Hz	IP67	NPN	Nickel-Plated Brass Polybutylene Terephthalate (PBT)	6 m	600 mm	236.22 in	23.622 in	LED	Ultrasonic	Connector	30 VDC	9 V	Cylinder Threaded - M30	70 °C	-25 °C
SICK, Inc. 6037665	12 Hz	IP67	PNP	Nickel-Plated Brass Polybutylene Terephthalate (PBT)	350 mm	65 mm	13.78 "	2.559 in	LED	Ultrasonic	Connector	30 VDC	9 V	Cylinder Threaded - M30	70 °C	-25 °C
SICK, Inc. 6037670	12 Hz	IP67	NPN	Nickel-Plated Brass Polybutylene Terephthalate (PBT)	350 mm	65 mm	13.78 "	2.559 in	LED	Ultrasonic	Connector	30 VDC	9 V	Cylinder Threaded - M30	70 °C	-25 °C
SICK, Inc. 6037668	3 Hz	IP67	PNP	Nickel-Plated Brass Polybutylene Terephthalate (PBT)	6 m	600 mm	236.22 in	23.622 in	LED	Ultrasonic	Connector	30 VDC	9 V	Cylinder Threaded - M30	70 °C	-25 °C
SICK, Inc. 6037671	8 Hz	IP67	NPN	Nickel-Plated Brass Polybutylene Terephthalate (PBT)	1300 mm	20 cm	51.181 "	7.874 "	LED	Ultrasonic	Connector	30 VDC	9 V	Cylinder Threaded - M30	70 °C	-25 °C
SICK, Inc. 6037676	8 Hz	IP67	NPN	Nickel-Plated Brass Polybutylene Terephthalate (PBT)	1300 mm	20 cm	51.181 "	7.874 "	LED	Ultrasonic	Connector	30 VDC	9 V	Cylinder Threaded - M30	70 °C	-25 °C
SICK, Inc. 6036921	25 Hz	IP67	Analog Current and Voltage PNP	Nickel-Plated Brass Polybutylene Terephthalate (PBT)	250 mm	30 mm	9.843 "	1.181 "	LED	Ultrasonic	Connector	30 VDC	9 V 15 VDC	Cylinder Threaded - M30	70 °C	-25 °C
SICK, Inc. 6036920		IP67	Analog Current and Voltage	Nickel-Plated Brass Polybutylene Terephthalate (PBT)	6 m	600 mm	236.22 in	23.622 in	LED	Ultrasonic	Connector	30 VDC	9 V 15 VDC	Cylinder Threaded - M30	70 °C	-25 °C
SICK, Inc. UM30-214118	4 Hz	IP67	Analog Current and Voltage PNP	Nickel-Plated Brass Polybutylene Terephthalate (PBT)			133.858 in	13.78 in	LED	Ultrasonic	Connector	30 VDC	9 V 15 VDC	Cylinder Threaded - M30	70 °C	-25 °C	350 mm	3400 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 453.66

Description

General part information

UM30 Series

SENSOR PROX ULTRASN 65-350MM CYL

Documents

Technical documentation and resources
