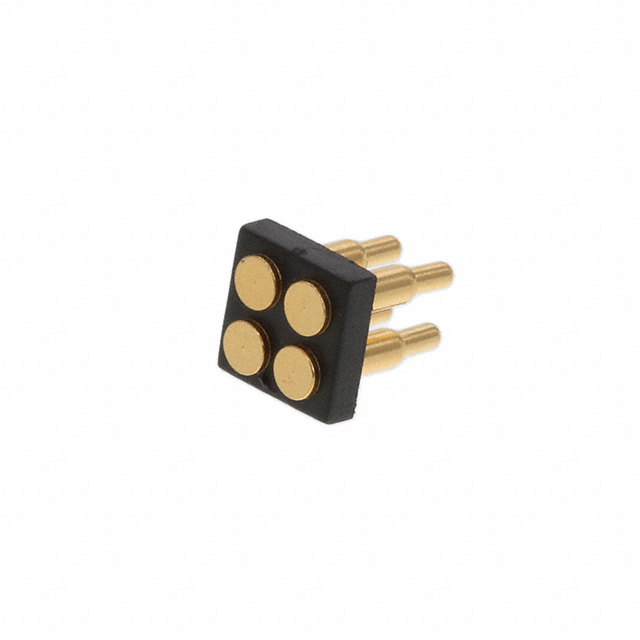

PH2-3B-04-MVF-5375

Active

Adam Tech

CONN SPRING PISTON 4POS SMD

Search across all available documentation for this part.

Active

Adam Tech

CONN SPRING PISTON 4POS SMD

Technical Specifications

Parameters and characteristics for this part

Part	Contact Finish	Connector Type	Mounting Type	Number of Rows	Pitch [x]	Pitch [x]	Row Spacing [x]	Row Spacing	Material	Number of Contacts	Number of Contacts [custom]
Adam Tech PH2-3B-02-MVF-4360	Gold	Piston	Surface Mount	2	2.54 mm	0.1 in	0.1 in	2.54 mm	Brass
Adam Tech PH2-3B-02-MVF-3345	Gold	Piston	Surface Mount	2	2.54 mm	0.1 in	0.1 in	2.54 mm	Brass
Adam Tech PH2-3B-02-MVS-5375-C1	Gold	Piston	Solder Cup Through Hole	2	2.54 mm	0.1 in	0.1 in	2.54 mm	Brass
Adam Tech PH2-3B-08-MVP-4360	Gold	Piston	Through Hole	2	2.54 mm	0.1 in	0.1 in	2.54 mm	Brass	8
Adam Tech PH2-3B-06-MVP-5375	Gold	Piston	Through Hole	2	2.54 mm	0.1 in	0.1 in	2.54 mm	Brass		6
Adam Tech PH2-3B-04-MVF-5375	Gold	Piston	Surface Mount	2	2.54 mm	0.1 in	0.1 in	2.54 mm	Brass		4
Adam Tech PH2-3B-06-MVF-4360-C1	Gold	Piston	Surface Mount	2	2.54 mm	0.1 in	0.1 in	2.54 mm	Brass		6
Adam Tech PH2-3B-06-MVP-3345	Gold	Piston	Through Hole	2	2.54 mm	0.1 in	0.1 in	2.54 mm	Brass		6
Adam Tech PH2-3B-08-MVF-3345	Gold	Piston	Surface Mount	2	2.54 mm	0.1 in	0.1 in	2.54 mm	Brass	8
Adam Tech PH2-3B-04-MVP-4360	Gold	Piston	Through Hole	2	2.54 mm	0.1 in	0.1 in	2.54 mm	Brass		4

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

4 Position Spring Piston Connector Surface Mount
