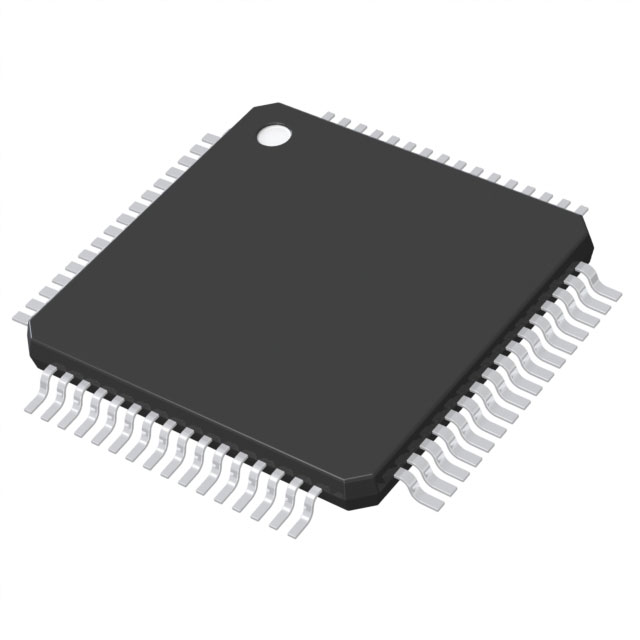

DSPIC33FJ64MC506-I/PT
ActiveMicrochip Technology
MCU 16-BIT DSPIC33 DSPIC RISC 64KB FLASH 3.3V 64-PIN TQFP TRAY
Deep-Dive with AI
Search across all available documentation for this part.
DSPIC33FJ64MC506-I/PT
ActiveMicrochip Technology
MCU 16-BIT DSPIC33 DSPIC RISC 64KB FLASH 3.3V 64-PIN TQFP TRAY
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | DSPIC33FJ64MC506-I/PT |
|---|---|
| Connectivity | IrDA, UART/USART, I2C, CANbus, SPI, LINbus |
| Core Processor | dsPIC |
| Core Size | 16-Bit |
| Data Converters | A/D 16x10b/12b |
| Mounting Type | Surface Mount |
| Number of I/O | 53 |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Oscillator Type | Internal |
| Package / Case | 64-TQFP |
| Program Memory Size | 64 KB |
| Program Memory Type | FLASH |
| RAM Size | 8 K |
| Speed | 40 MIPs |
| Supplier Device Package | 64-TQFP (10x10) |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tray | 1 | $ 7.60 | |
| 25 | $ 6.98 | |||
| 100 | $ 6.72 | |||
| Microchip Direct | TRAY | 1 | $ 7.60 | |
| 25 | $ 6.98 | |||
| 100 | $ 6.30 | |||
| 1000 | $ 5.80 | |||
| 5000 | $ 5.53 | |||
| Newark | Each | 1 | $ 7.90 | |
| 10 | $ 7.58 | |||
| 25 | $ 7.26 | |||
| 50 | $ 7.13 | |||
| 100 | $ 7.00 | |||
| 320 | $ 6.99 | |||
Description
General part information
dsPIC33FJ64MC506A Series
The
dsPIC33FJ64MC506A family of devices supports a variety of motor
control applications, such as brushless DC motors, single and 3-phase induction
