1003-005-22100

Obsolete

CnC Tech, LLC

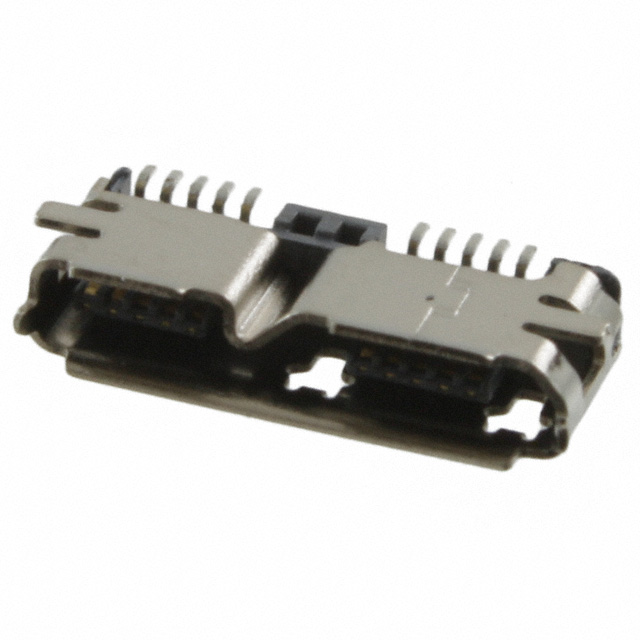

CONN RCPT USB3.0 MICRO B SMD R/A

Search across all available documentation for this part.

Obsolete

CnC Tech, LLC

CONN RCPT USB3.0 MICRO B SMD R/A

Technical Specifications

Parameters and characteristics for this part

Part	Insulation Color	Contact Finish	Number of Contacts	Number of Ports	Mounting Type	Connector Type	Material Flammability Rating	Mounting Feature	Gender	Current Rating (Amps)	Shielding	Termination	Shell/Shielding Material	Operating Temperature [Min]	Operating Temperature [Max]	Features
CnC Tech, LLC 1003-005-23100-TR	Black	Gold	10	1	Surface Mount Right Angle	USB - micro B	UL94 V-0	Horizontal	Receptacle	0.25 A 1.8 A	Unshielded	Solder	Brass	-40 °C	105 ░C
CnC Tech, LLC 1003-005-22100	Black	Gold	10	1	Surface Mount Right Angle	USB - micro B		Horizontal	Receptacle			Solder				Solder Retention
CnC Tech, LLC 1003-005-23100	Black	Gold	10	1	Surface Mount Right Angle	USB - micro AB		Horizontal	Receptacle			Solder				Solder Retention
CnC Tech, LLC 1003-005-22100-TR	Black	Gold	10	1	Surface Mount Right Angle	USB - micro B	UL94 V-0	Horizontal	Receptacle	0.25 A 1.8 A	Unshielded	Solder	Brass	-40 °C	105 ░C

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

USB - micro B USB 3.2 Gen 1 (USB 3.1 Gen 1, Superspeed (USB 3.0)) Receptacle Connector 10 Position Surface Mount, Right Angle
