M74HC245B1R

Obsolete

STMicroelectronics

IC TXRX NON-INVERT 6V 20DIP

Search across all available documentation for this part.

Obsolete

STMicroelectronics

IC TXRX NON-INVERT 6V 20DIP

Technical Specifications

Parameters and characteristics for this part

Specification	M74HC245B1R

Current - Output High, Low [custom]	7.8 mA
Current - Output High, Low [custom]	7.8 mA
Mounting Type	Through Hole
Number of Bits per Element	8
Number of Elements	1
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Output Type	3-State

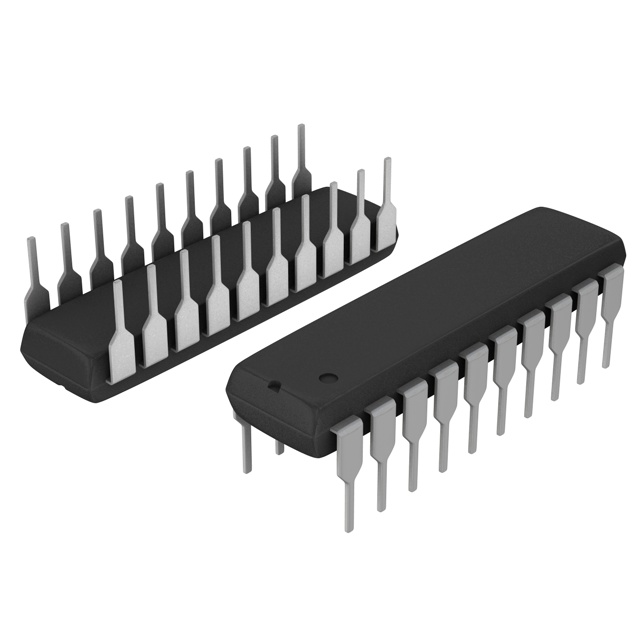

Package / Case	20-DIP
Package / Case	7.62 mm
Package / Case	0.3 in
Supplier Device Package	20-DIP
Voltage - Supply [Max]	6 V
Voltage - Supply [Min]	2 V

Part	Operating Temperature [Max]	Operating Temperature [Min]	Supplier Device Package	Output Type	Number of Elements	Mounting Type	Voltage - Supply [Min]	Voltage - Supply [Max]	Package / Case [y]	Package / Case	Package / Case [x]	Current - Output High, Low [custom]	Current - Output High, Low [custom]	Number of Bits per Element	Package / Case [y]	Package / Case	Package / Case
STMicroelectronics M74HC245TTR	125 °C	-55 °C	20-TSSOP	3-State	1	Surface Mount	2 V	6 V	4.4 mm	20-TSSOP	0.173 in	7.8 mA	7.8 mA	8
STMicroelectronics M74HC245RM13TR	125 °C	-55 °C	20-SO	3-State	1	Surface Mount	2 V	6 V	0.295 in	20-SOIC		7.8 mA	7.8 mA	8	7.5 mm
STMicroelectronics M74HC245B1R	125 °C	-55 °C	20-DIP	3-State	1	Through Hole	2 V	6 V		20-DIP		7.8 mA	7.8 mA	8		7.62 mm	0.3 in

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Transceiver, Non-Inverting 1 Element 8 Bit per Element 3-State Output 20-DIP
