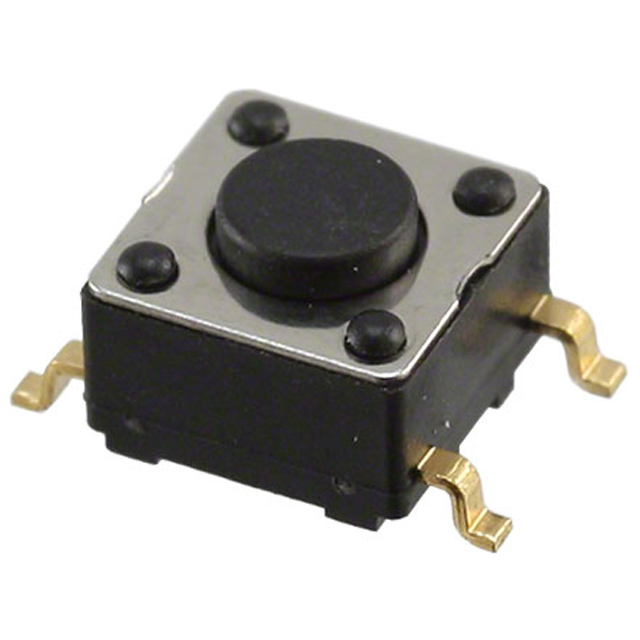

HP0315AFKP4-R
ActiveNKK Switches
SWITCH TACTILE OFF (ON) SPST FLAT ROUND BUTTON GULL WING 0.1A 28VAC 28VDC 0.4VA 500000CYCLES 1.6N SMD T/R
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
HP0315AFKP4-R
ActiveNKK Switches
SWITCH TACTILE OFF (ON) SPST FLAT ROUND BUTTON GULL WING 0.1A 28VAC 28VDC 0.4VA 500000CYCLES 1.6N SMD T/R
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | HP0315AFKP4-R |
|---|---|
| Actuator Height off PCB, Vertical [z] | 4.4 mm |
| Actuator Material | Glass Filled, Polyamide (PA), Nylon |
| Actuator Orientation | Top Actuated |
| Actuator Type | Standard |
| Circuit | SPST-NO |
| Features | Sealed - Flux Protection |
| Illumination | Non-Illuminated |
| Mechanical Life | 500000 Cycles |
| Mounting Type | Surface Mount |
| Operating Temperature [Max] | 70 °C |
| Operating Temperature [Min] | -20 C |
| Outline [x] | 6.2 mm |
| Outline [y] | 6.2 mm |
| Switch Function | Off-Mom |
| Switch Travel | 0.2 mm |
| Termination Style | Gull Wing |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 1.67 | |
| 10 | $ 1.62 | |||
| 25 | $ 1.47 | |||
| 100 | $ 1.28 | |||
| 250 | $ 1.16 | |||
| 500 | $ 1.08 | |||
| Digi-Reel® | 1 | $ 1.67 | ||
| 10 | $ 1.62 | |||
| 25 | $ 1.47 | |||
| 100 | $ 1.28 | |||
| 250 | $ 1.16 | |||
| 500 | $ 1.08 | |||
| Tape & Reel (TR) | 1000 | $ 0.82 | ||
Description
General part information
HP0315A Series
Tactile Switch SPST-NO Top Actuated Surface Mount
