S-1142D28H-E6T2U

Active

ABLIC Inc.

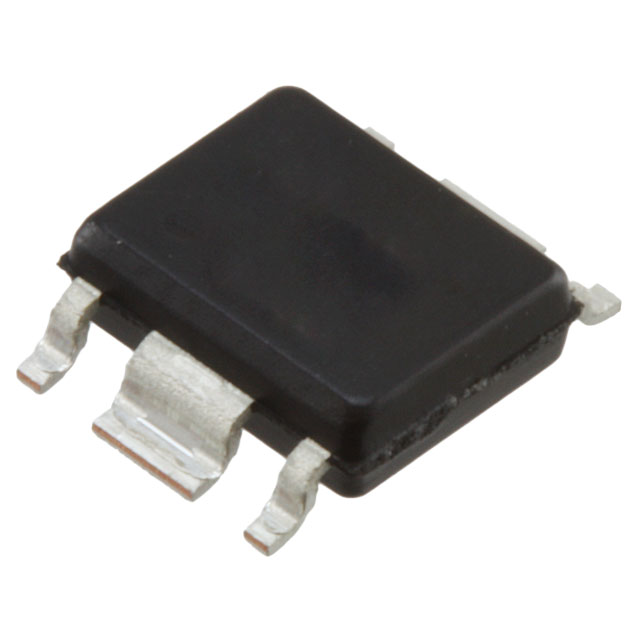

IC REG LINEAR 2.8V 200MA 6HSOP

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

S-1142D28H-E6T2U

Active

ABLIC Inc.

IC REG LINEAR 2.8V 200MA 6HSOP

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	S-1142D28H-E6T2U

Control Features	Enable
Current - Output	200 mA
Current - Quiescent (Iq)	2.5 µA
Current - Supply (Max)	9 µA
Mounting Type	Surface Mount
Number of Regulators	1
Operating Temperature [Max]	105 °C
Operating Temperature [Min]	-40 °C
Output Configuration	Positive
Output Type	1.81 mOhm
Package / Case	0.154 in, 3.9 mm
Package / Case [custom]	6-SOIC Variation
Package / Case [custom]	4
Package / Case [custom]	2
Protection Features	Over Current, Thermal Shutdown
PSRR	45 dB
Voltage - Input (Max) [Max]	50 V
Voltage - Output (Min/Fixed)	2.8 V
Voltage Dropout (Max) [Max]	0.82 V

S-1142 Series

Part	Mounting Type	Voltage - Input (Max) [Max]	Voltage - Output (Min/Fixed)	Output Configuration	Current - Output	PSRR	Current - Supply (Max)	Output Type	Number of Regulators	Operating Temperature [Max]	Operating Temperature [Min]	Protection Features	Current - Quiescent (Iq)	Voltage Dropout (Max) [Max]	Control Features	Package / Case [custom]	Package / Case	Package / Case [custom]	Package / Case [custom]
ABLIC Inc. S-1142C33H-E6T2U	Surface Mount	50 V	3.3 V	Positive	200 mA	45 dB	9 µA	1.81 mOhm	1	105 °C	-40 °C	Over Current Thermal Shutdown	2.5 µA	0.72 V	Enable	6-SOIC Variation	0.154 in 3.9 mm	4	2
ABLIC Inc. S-1142D30A-E6T2U	Surface Mount	50 V		Positive	200 mA	45 dB	9 µA	1.81 mOhm	1	85 °C	-40 °C	Over Current Thermal Shutdown	1 µA	0.72 V	Enable	6-SOIC Variation	0.154 in 3.9 mm	4	2
ABLIC Inc. S-1142B2JH-E6T2U	Surface Mount	50 V	2.85 V	Positive	200 mA	45 dB	9 µA	1.81 mOhm	1	105 °C	-40 °C	Over Current Thermal Shutdown	2.5 µA	0.82 V	Enable	6-SOIC Variation	0.154 in 3.9 mm	4	2
ABLIC Inc. S-1142D25H-E6T2U	Surface Mount	50 V	2.5 V	Positive	200 mA	45 dB	9 µA	1.81 mOhm	1	105 °C	-40 °C	Over Current Thermal Shutdown	2.5 µA	0.92 V	Enable	6-SOIC Variation	0.154 in 3.9 mm	4	2
ABLIC Inc. S-1142B90I-E6T1U	Surface Mount	50 V	9 V	Positive	200 mA	35 db	9 µA	1.81 mOhm	1	85 °C	-40 °C	Over Current Thermal Shutdown	1 µA	0.4 V	Enable	6-SOIC Variation	0.154 in 3.9 mm	4	2
ABLIC Inc. S-1142A50I-E6T1U	Surface Mount	50 V	5 V	Positive	200 mA	40 dB	9 µA	1.81 mOhm	1	85 °C	-40 °C	Over Current Thermal Shutdown	1 µA	0.5 V	Enable	6-SOIC Variation	0.154 in 3.9 mm	4	2
ABLIC Inc. S-1142C40H-E6T2U	Surface Mount	50 V	4 V	Positive	200 mA	40 dB	9 µA	1.81 mOhm	1	105 °C	-40 °C	Over Current Thermal Shutdown	2.5 µA	0.55 V	Enable	6-SOIC Variation	0.154 in 3.9 mm	4	2
ABLIC Inc. S-1142DFOH-E6T2U	Surface Mount	50 V	15 V	Positive	200 mA	30 dB	9 µA	1.81 mOhm	1	105 °C	-40 °C	Over Current Thermal Shutdown	2.5 µA	0.4 V	Enable	6-SOIC Variation	0.154 in 3.9 mm	4	2
ABLIC Inc. S-1142D28H-E6T2U	Surface Mount	50 V	2.8 V	Positive	200 mA	45 dB	9 µA	1.81 mOhm	1	105 °C	-40 °C	Over Current Thermal Shutdown	2.5 µA	0.82 V	Enable	6-SOIC Variation	0.154 in 3.9 mm	4	2
ABLIC Inc. S-1142D40H-E6T2U	Surface Mount	50 V	4 V	Positive	200 mA	40 dB	9 µA	1.81 mOhm	1	105 °C	-40 °C	Over Current Thermal Shutdown	2.5 µA	0.55 V	Enable	6-SOIC Variation	0.154 in 3.9 mm	4	2

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tape & Reel (TR)	2000	$ 1.17
		6000	$ 1.13

Description

General part information

S-1142 Series

Linear Voltage Regulator IC Positive Fixed 1 Output 200mA 6-HSOP
