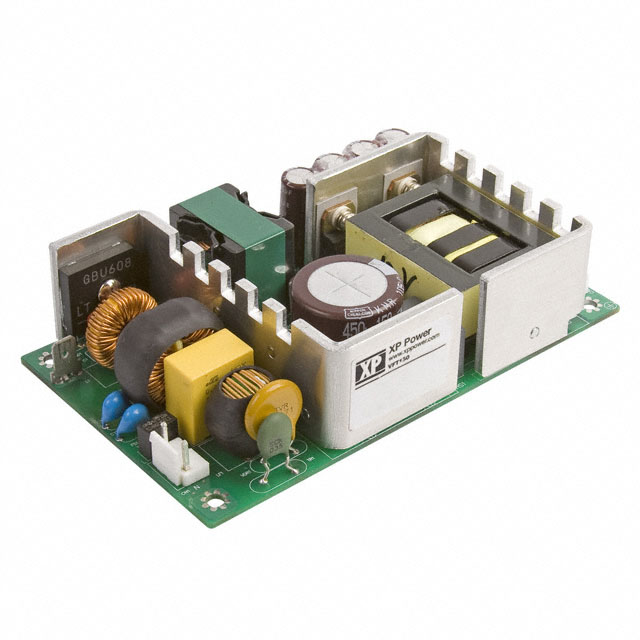

VFT150PS15

Active

XP POWER

AC/DC CONVERTER 15V 150W

Search across all available documentation for this part.

Active

XP POWER

AC/DC CONVERTER 15V 150W

Technical Specifications

Parameters and characteristics for this part

Specification	VFT150PS15

Applications	ITE (Commercial)
Current - Output 1	6.66 A
Efficiency	87 %
Features	Remote Sense, Universal Input, Adjustable Output
Minimum Load Required	False
Mounting Type	Chassis Mount
Number of Outputs	1
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-10 °C
Power (Watts)	150 W
Size / Dimension [x]	127 mm
Size / Dimension [x]	5 in
Size / Dimension [y]	3 "
Size / Dimension [y]	76.2 mm
Size / Dimension [z]	33 mm
Size / Dimension [z]	1.3 "
Standard Number	62368-1
Type	Open Frame
Voltage - Input [Max]	264 VAC
Voltage - Input [Min]	90 VAC
Voltage - Isolation	3000 V
Voltage - Output 1	15 V

Part	Applications	Type	Current - Output 1	Efficiency	Minimum Load Required	Standard Number	Voltage - Isolation	Number of Outputs	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [z]	Operating Temperature [Min]	Operating Temperature [Max]	Voltage - Input [Min]	Voltage - Input [Max]	Mounting Type	Voltage - Output 1	Features	Power (Watts)
XP POWER VFT150PS15	ITE (Commercial)	Open Frame	6.66 A	87 %		62368-1	3000 V	1	3 "	127 mm	76.2 mm	33 mm	5 in	1.3 "	-10 °C	70 °C	90 VAC	264 VAC	Chassis Mount	15 V	Adjustable Output Remote Sense Universal Input	150 W
XP POWER VFT150PS05	ITE (Commercial)	Open Frame	24 A	83 %		62368-1	3000 V	1	3 "	127 mm	76.2 mm	33 mm	5 in	1.3 "	-10 °C	70 °C	90 VAC	264 VAC	Chassis Mount	5 V	Adjustable Output Remote Sense Universal Input	150 W

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1000	$ 60.43

General part information

Open Frame AC DC Converters 1 Output 15V 90 ~ 264 VAC Input
