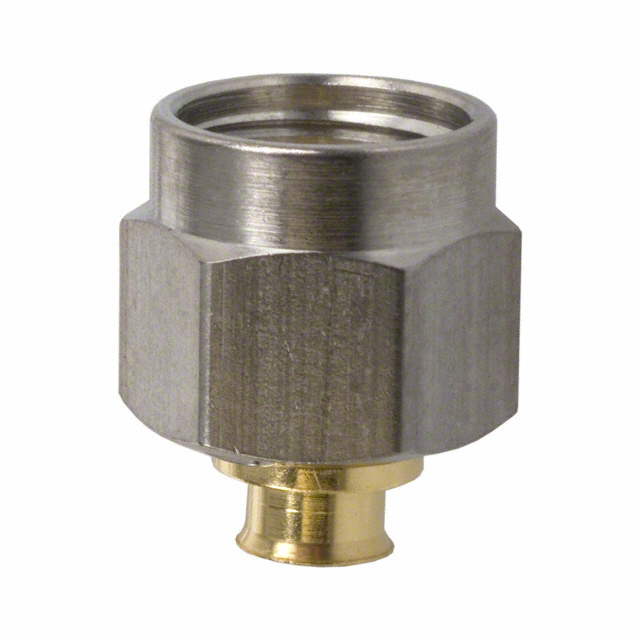

CONN SMA PLUG STR 50 OHM SOLDER

Search across all available documentation for this part.

Active

Amphenol RF

CONN SMA PLUG STR 50 OHM SOLDER

Technical Specifications

Parameters and characteristics for this part

Specification	901-9723

Body Finish	Gold; Passivated
Body Material	Stainless Steel
Cable Group	Semi Rigid, RG-405
Cable Group [Max]	0.086 in
Cable Group [Min]	0.085 in
Center Contact Material	Beryllium Copper
Center Contact Plating	Gold
Connector Style	SMA
Connector Type	Male Pin, Plug
Contact Termination	Solder
Dielectric Material	Polytetrafluoroethylene (PTFE)
Frequency - Max [Max]	18 GHz
Housing Color	Gold, Silver
Impedance	50 Ohms
Mating Cycles	500
Mounting Type	Free Hanging (In-Line)
Number of Ports	1
Operating Temperature [Max]	165 °C
Operating Temperature [Min]	-65 ░C
Shield Termination	Solder

Part	Body Material	Mounting Type	Center Contact Plating	Frequency - Max [Max]	Impedance	Shield Termination	Housing Color	Connector Style	Connector Type	Dielectric Material	Center Contact Material	Cable Group	Cable Group [Min]	Cable Group [Max]	Body Finish	Contact Termination	Mating Cycles	Operating Temperature [Min]	Operating Temperature [Max]	Number of Ports	Center Gender	Convert From (Adapter End)	Adapter Type	Conversion Type	Style	Mounting Feature	Convert To (Adapter End)
Amphenol RF 901-9723	Stainless Steel	Free Hanging (In-Line)	Gold	18 GHz	50 Ohms	Solder	Gold Silver	SMA	Male Pin Plug	Polytetrafluoroethylene (PTFE)	Beryllium Copper	RG-405 Semi Rigid	0.085 in	0.086 in	Gold; Passivated	Solder	500	-65 ░C	165 °C	1
Amphenol RF 901-9720	Stainless Steel		Gold	7 GHz	50 Ohms					Polytetrafluoroethylene (PTFE)	Beryllium Copper						500	-65 ░C	165 °C		Female to Female	Female Socket SMA Jack	Jack to Jack	Between Series	Straight	Flange	Female Socket N Jack
Amphenol RF 901-9723-10	Stainless Steel	Free Hanging (In-Line)	Gold	18 GHz	50 Ohms	Solder	Gold Silver	SMA	Male Pin Plug	Polytetrafluoroethylene (PTFE)	Beryllium Copper	RG-405 Semi Rigid	0.085 in	0.086 in	Gold; Passivated	Solder	500	-65 ░C	165 °C	1
Amphenol RF 901-9704	Stainless Steel	Free Hanging (In-Line)	Gold	18 GHz	50 Ohms	Solder	Gold	SMA	Female Socket Jack	Polytetrafluoroethylene (PTFE)	Beryllium Copper				Gold	Solder	500	-65 ░C	165 °C	1
Amphenol RF 901-9758	Stainless Steel		Gold	12.4 GHz	50 Ohms	Solder	Silver	SMA	Female Socket Receptacle	Polytetrafluoroethylene (PTFE)	Beryllium Copper					Solder	500	-65 ░C	165 °C	1						Flange
