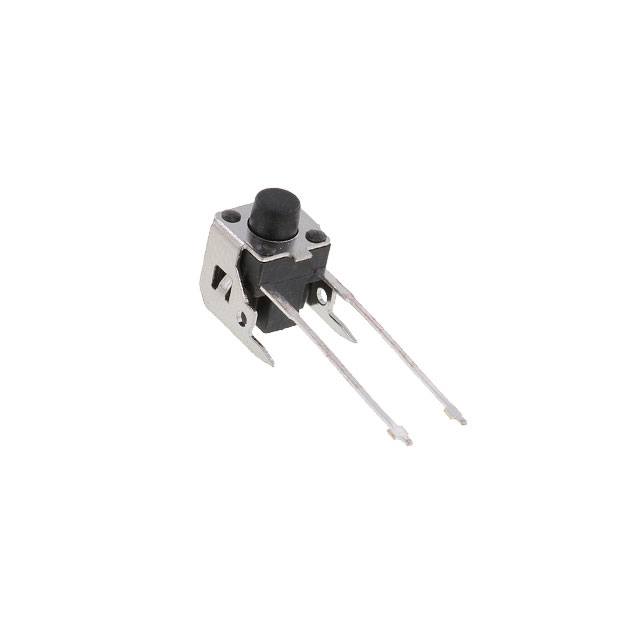

TL58XF160Q
ActiveE-Switch
SWITCH TACTILE SPST-NO 0.05A 12V
Deep-Dive with AI
Search across all available documentation for this part.
TL58XF160Q
ActiveE-Switch
SWITCH TACTILE SPST-NO 0.05A 12V
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | TL58XF160Q |
|---|---|
| Actuator Length, Right Angle | 4.75 mm |
| Actuator Material | Polybutylene Terephthalate (PBT) |
| Actuator Orientation | Side Actuated |
| Actuator Type | Standard |
| Circuit | SPST-NO |
| Contact Rating @ Voltage | 0.05 A, 12 VDC |
| Illumination | Non-Illuminated |
| Mechanical Life | 100000 Cycles |
| Mounting Type | Through Hole, Right Angle |
| Operating Temperature [Max] | 70 °C |
| Operating Temperature [Min] | -20 C |
| Outline [x] | 7.4 mm |
| Outline [y] | 6.65 mm |
| Switch Function | Off-Mom |
| Switch Travel | 0.25 mm |
| Termination Style | PC Pin |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 0.33 | |
| 10 | $ 0.32 | |||
| 25 | $ 0.30 | |||
| 100 | $ 0.26 | |||
| 250 | $ 0.24 | |||
| Tape & Box (TB) | 700 | $ 0.22 | ||
| 1400 | $ 0.20 | |||
| 3500 | $ 0.19 | |||
| 4900 | $ 0.17 | |||
| 17500 | $ 0.16 | |||
Description
General part information
TL58X Series
Tactile Switch SPST-NO Side Actuated Through Hole, Right Angle
