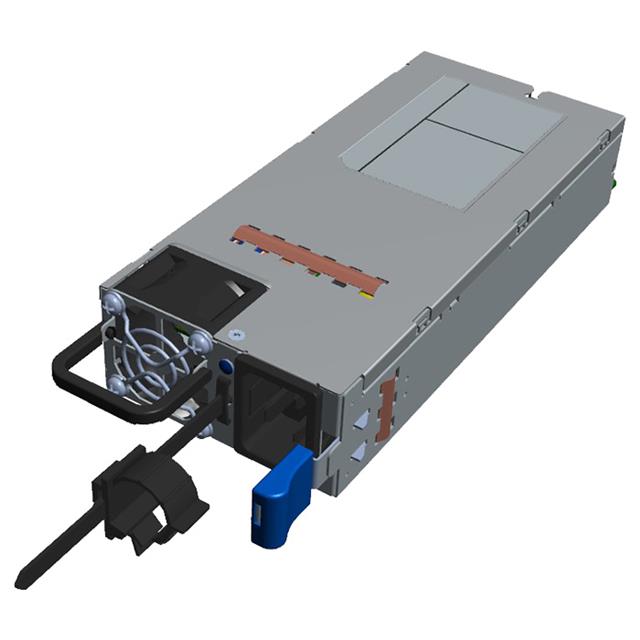

TET2200-12-086RA

Active

EOS Power India Private Ltd

AC/DC CONVERTER 12V 2196W

Search across all available documentation for this part.

Active

EOS Power India Private Ltd

AC/DC CONVERTER 12V 2196W

Technical Specifications

Parameters and characteristics for this part

Specification	TET2200-12-086RA

Applications	ITE (Commercial)
Approval Agency	CE
Current - Output 1	183 A
Efficiency	96 %
Features	Adjustable Output, Standby Output, Remote Sense
Mounting Type	Rack Mount
Number of Outputs	1
Power (Watts)	2196 W
Size / Dimension [x]	7.74 in
Size / Dimension [x]	196.5 mm
Size / Dimension [y]	3.4 in
Size / Dimension [y]	86.3 mm
Size / Dimension [z]	1.57 "
Size / Dimension [z]	40 mm
Type	Front End
Voltage - Input [Max]	240 VAC, 300 VDC
Voltage - Input [Min]	100 VAC, 180 V
Voltage - Isolation	4.242 kV
Voltage - Output 1	12 V

Part	Voltage - Input (Max) [Max]	Voltage - Output 1	Number of Outputs	Power (Watts)	Voltage - Input (Min) [Min]	Voltage - Isolation	Applications	Type	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [y]	Approval Agency	Current - Output (Max) [Max]	Efficiency	Mounting Type	Current - Output 1	Voltage - Input [Min]	Voltage - Input [Max]	Features
EOS Power India Private Ltd TET2200-12-086RD	-72 V	12 V	1	2200 W	-40 V	1.5 kV	ITE (Commercial)	Front End	7.74 in	196.5 mm	3.4 in	1.57 "	40 mm	86.3 mm	CE	183 A	94 %	Rack Mount
EOS Power India Private Ltd TET2200-12-086RA		12 V	1	2196 W		4.242 kV	ITE (Commercial)	Front End	7.74 in	196.5 mm	3.4 in	1.57 "	40 mm	86.3 mm	CE		96 %	Rack Mount	183 A	100 VAC 180 V	240 VAC 300 VDC	Adjustable Output Remote Sense Standby Output
EOS Power India Private Ltd TET2200-12-086NA		12 V	1	2196 W		4.242 kV	ITE (Commercial)	Front End	7.74 in	196.5 mm	3.4 in	1.57 "	40 mm	86.3 mm	CE		96 %	Rack Mount	183 A	100 VAC 180 V	240 VAC 300 VDC	Adjustable Output Remote Sense Standby Output
EOS Power India Private Ltd TET2200-12-086ND	-72 V	12 V	1	2200 W	-40 V	1.5 kV	ITE (Commercial)	Front End	7.74 in	196.5 mm	3.4 in	1.57 "	40 mm	86.3 mm	CE	183 A	94 %	Rack Mount

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	6	$ 582.05

General part information

Front End AC DC Converters 1 Output 12V 100 ~ 240 VAC, 180 ~ 300 VDC Input
