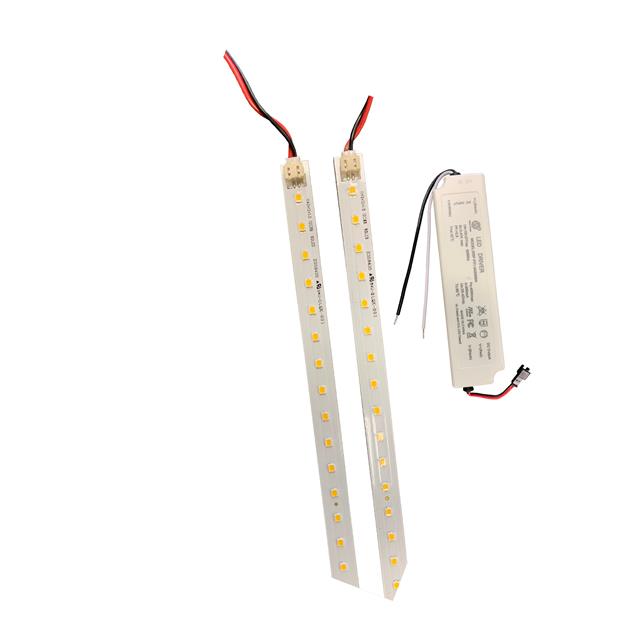

GI-22TRK-WD32-UL4

Active

Green Ignite Inc

LED MOD WM WHT LNR STRP 3500K

Search across all available documentation for this part.

Active

Green Ignite Inc

LED MOD WM WHT LNR STRP 3500K

Technical Specifications

Parameters and characteristics for this part

Specification	GI-22TRK-WD32-UL4

CCT (K)	3500 K
Color	White, Warm
Configuration	Linear Light Strip
CRI (Color Rendering Index)	83
Lens Type	Flat
Lumens/Watt @ Current - Test	132 lm/W
Luminous Flux @ Current/Temperature	2121 lm
Type	LED Module
Viewing Angle	120 °
Voltage - Forward (Vf) (Typ)	188.5 V

Part	Type	Color	Voltage - Forward (Vf) (Typ)	Luminous Flux @ Current/Temperature	CRI (Color Rendering Index)	Lens Type	Viewing Angle	Configuration	Lumens/Watt @ Current - Test	CCT (K)	Features
Green Ignite Inc GI-22TRK-WD32-UL4	LED Module	Warm White	188.5 V	2121 lm	83	Flat	120 °	Linear Light Strip	132 lm/W	3500 K
Green Ignite Inc GI-22TRK-WD32C-UL4	LED Module		188.5 V	2112 lm	83	Flat	120 °	Linear Light Strip	132 lm/W	3500 K
Green Ignite Inc GI-22TRK-W32D-UL4	LED Module	Warm White	188.5 V	2121 lm	83	Flat	120 °	Linear Light Strip	132 lm/W		Dimming
Green Ignite Inc GI-22TRK-C32-UL4	LED Module	Cool White	188.5 V	2121 lm	83	Flat	120 °	Linear Light Strip	132 lm/W	5000 K

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 34.29

General part information

LED Lighting COBs Engines Modules LED Module - White, Warm Linear Light Strip

Technical documentation and resources

No documents available
