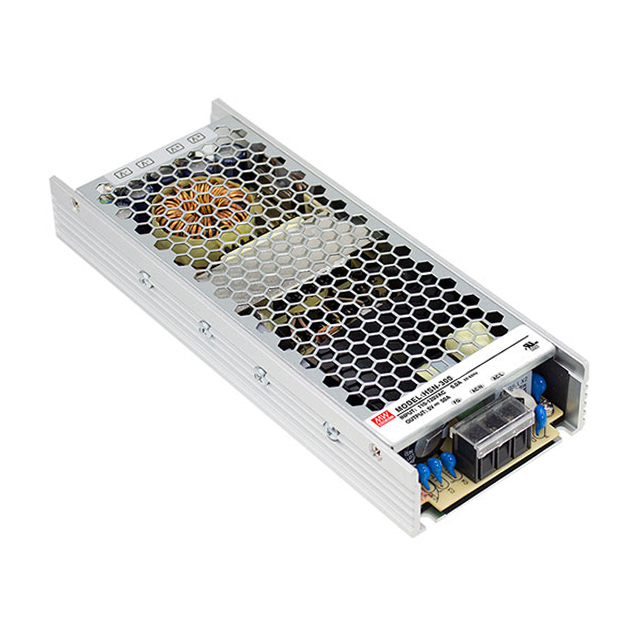

HSN-300-5B

NRND

MEAN WELL USA Inc.

AC/DC CONVERTER 5V 300W

Search across all available documentation for this part.

NRND

MEAN WELL USA Inc.

AC/DC CONVERTER 5V 300W

Technical Specifications

Parameters and characteristics for this part

Part	Voltage - Input [Max]	Voltage - Input [Min]	Mounting Type	Applications	Voltage - Isolation	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [z]	Power (Watts)	Type	Current - Output 1	Number of Outputs	Voltage - Output 1	Operating Temperature [Min]	Operating Temperature [Max]	Features	Efficiency
MEAN WELL USA Inc. HSN-300-5B	264 VAC 370 VDC	180 VAC 254 VDC	Chassis Mount	ITE (Commercial)	3000 V	3.19 in	210 mm	8.27 in	81 mm	1.22 in	31 mm	300 W	Conformal Coated Enclosed	60 A	1	5 V	-20 °C	70 °C	Adjustable Output	86 %
MEAN WELL USA Inc. HSN-300-5A	132 VAC 373 VDC	90 VAC 254 VDC	Chassis Mount	ITE (Commercial)	3000 V	3.19 in	210 mm	8.27 in	81 mm	1.22 in	31 mm	250 W	Conformal Coated Enclosed	50 A	1	5 V	-20 °C	70 °C	Adjustable Output	86 %
MEAN WELL USA Inc. HSN-300-4.2A	132 VAC 373 VDC	90 VAC 254 VDC	Chassis Mount	ITE (Commercial)	3000 V	3.19 in	210 mm	8.27 in	81 mm	1.22 in	31 mm	210 W	Conformal Coated Enclosed	50 A	1	4.2 V	-20 °C	70 °C	Adjustable Output	85 %

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	20	$ 53.99

General part information

Enclosed, Conformal Coated AC DC Converters 1 Output 5V 180 ~ 264 VAC, 254 ~ 370 VDC Input
