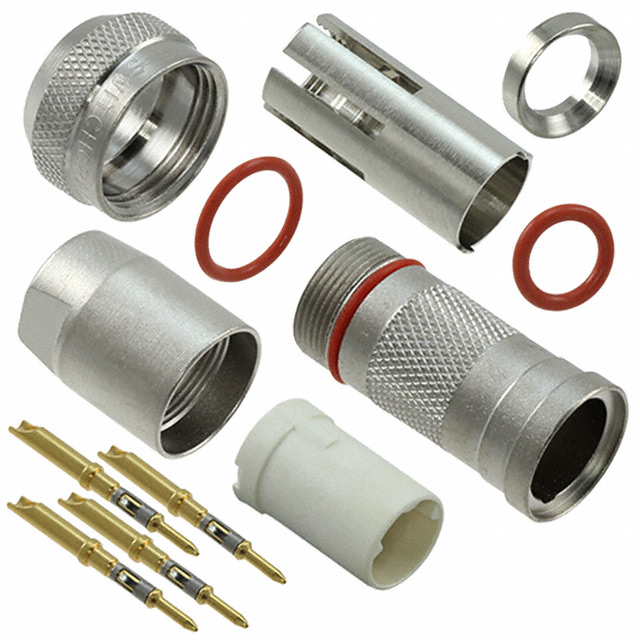

TS2C4M20C
ActiveSwitchcraft Inc.
CONN PLUG MALE 4POS GOLD CRIMP
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
TS2C4M20C
ActiveSwitchcraft Inc.
CONN PLUG MALE 4POS GOLD CRIMP
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | TS2C4M20C |
|---|---|
| Applications | Audio, Testing Equipment & Measurement, Agriculture, Medical, General |
| Backshell Material, Plating | Copper Alloy, Nickel |
| Cable Opening [Max] [diameter] | 5.49 mm |
| Cable Opening [Max] [diameter] | 0.216 in |
| Cable Opening [Min] [diameter] | 4.57 mm |
| Cable Opening [Min] [diameter] | 0.18 in |
| Color | Silver |
| Connector Type | Plug, Male Pins |
| Contact Finish - Mating | Gold |
| Contact Material | Copper Alloy |
| Features | Coupling Nut, Backshell |
| Ingress Protection | IP68, IP66, IP67 |
| Insert Material | Liquid Crystal Polymer (LCP) |
| Mounting Type | Free Hanging (In-Line) |
| Number of Positions | 4 |
| Operating Temperature [Max] | 135 °C |
| Operating Temperature [Min] | -40 °C |
| Orientation | Keyed |
| Primary Material | Metal |
| Shell Finish | Electroless Nickel |
| Shell Material | Copper Alloy |
| Shielding | Shielded |
| Termination | Crimp, Solder Cup |
| Voltage Rating | 125 VAC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 34.35 | |
| 10 | $ 26.53 | |||
| 25 | $ 24.05 | |||
| 50 | $ 22.37 | |||
| 100 | $ 20.86 | |||
| 250 | $ 19.07 | |||
| 500 | $ 17.93 | |||
Description
General part information
TS2C4M Series
4 Position Circular Connector Plug, Male Pins Crimp or Solder Cup
