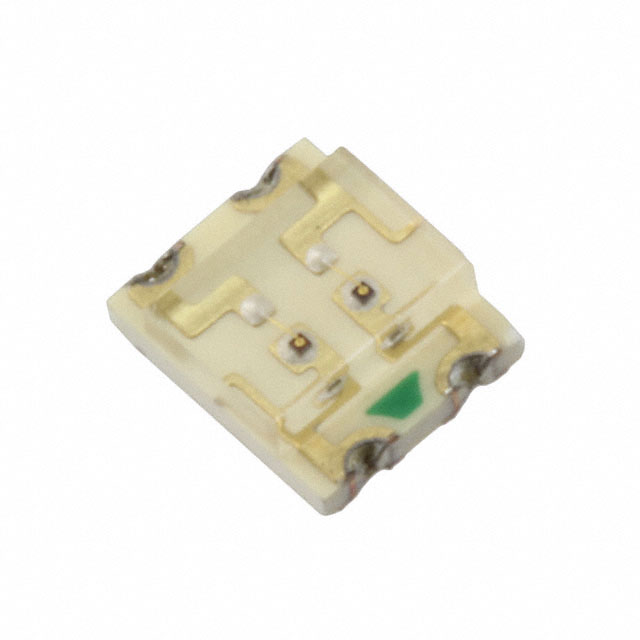

APB3227SURKCGKC

Active

Kingbright

LED GREEN/RED CLEAR SMD

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

APB3227SURKCGKC

Active

Kingbright

LED GREEN/RED CLEAR SMD

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	APB3227SURKCGKC

Color	Red, Green
Configuration	Independent
Current - Test	20 mA, 20 mA
Height (Max) [Max] [z]	1.1 mm
Lens Color	Colorless
Lens Size [x]	2 mm
Lens Size [y]	2.7 mm
Lens Style	Rectangle with Flat Top
Lens Transparency	Clear
Millicandela Rating	80 mcd, 55 mcd
Mounting Type	Surface Mount
Package / Case	1210
Package / Case	3225 Metric
Supplier Device Package	SMD
Viewing Angle	140 °
Voltage - Forward (Vf) (Typ) [custom]	2.1 V
Voltage - Forward (Vf) (Typ) [custom]	1.95 V
Wavelength - Dominant	630 nm, 570 nm
Wavelength - Peak	574 nm, 645 nm

APB3227 Series

Part	Voltage - Forward (Vf) (Typ) [custom]	Voltage - Forward (Vf) (Typ) [custom]	Wavelength - Peak	Current - Test	Wavelength - Dominant [custom]	Wavelength - Dominant [custom]	Millicandela Rating	Package / Case	Package / Case	Lens Style	Configuration	Viewing Angle	Height (Max) [Max] [z]	Lens Color	Mounting Type	Lens Size [x]	Lens Size [y]	Color	Lens Transparency	Supplier Device Package	Wavelength - Dominant	Voltage - Forward (Vf) (Typ)	Current - Test [custom]	Current - Test [custom]	Height (Max) [Max]
Kingbright APB3227SURKZGC	3.3 V	1.95 V	515 nm 645 nm	20 mA 20 mA	525 nm	630 nm	80 mcd 400 mcd	1210	3225 Metric	Rectangle with Flat Top	Independent	100 °	1.1 mm	Colorless	Surface Mount	2 mm	2.7 mm	Green Red	Clear	SMD
Kingbright APB3227SURKCGKC	2.1 V	1.95 V	574 nm 645 nm	20 mA 20 mA			55 mcd 80 mcd	1210	3225 Metric	Rectangle with Flat Top	Independent	140 °	1.1 mm	Colorless	Surface Mount	2 mm	2.7 mm	Green Red	Clear	SMD	570 nm 630 nm
Kingbright APB3227ZGQBDC			460 nm 515 nm				100 mcd 400 mcd	1210	3225 Metric	Rectangle with Flat Top	Independent	100 °	1.1 mm	Colorless	Surface Mount	2 mm	2.7 mm	Blue Green	Clear	SMD	465 nm 525 nm	3.3 V 3.3 V	20 mA	20 mA
Kingbright APB3227SURKZGKC	3.3 V	1.95 V	515 nm 645 nm	20 mA 20 mA	525 nm	630 nm	250 mcd 350 mcd	1210	3225 Metric	Rectangle with Flat Top	Independent	100 °		Colorless	Surface Mount	2.7 mm	2 mm	Green Red	Clear	4-SMD					1.2 mm
Kingbright APB3227ZGKQBDC			460 nm 515 nm				100 mcd 350 mcd	1210	3225 Metric	Rectangle with Flat Top	Independent	100 °	1.1 mm	Colorless	Surface Mount	2.7 mm	2 mm	Blue Green	Clear	SMD	465 nm 525 nm	3.3 V 3.3 V	20 mA	20 mA
Kingbright APB3227SEKCGKC			574 nm 610 nm	20 mA 20 mA			55 mcd 180 mcd	1210	3225 Metric	Rectangle with Flat Top	Independent	100 °	1.1 mm	Colorless	Surface Mount	2 mm	2.7 mm	Green Orange	Clear	SMD	570 nm 601 nm	2.1 V 2.1 V
Kingbright APB3227SYKCGKC			574 nm 590 nm	20 mA 20 mA			55 mcd 150 mcd	1210	3225 Metric	Rectangle with Flat Top	Independent	100 °	1.1 mm	Colorless	Surface Mount	2 mm	2.7 mm	Green Yellow	Clear	SMD	570 nm 590 nm	2 V 2.1 V

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Cut Tape (CT)	1	$ 0.60
		10	$ 0.36
		100	$ 0.23
		500	$ 0.18
		1000	$ 0.17
	Digi-Reel®	1	$ 0.60
		10	$ 0.36
		100	$ 0.23
		500	$ 0.18
		1000	$ 0.17
	Tape & Reel (TR)	2000	$ 0.15
		4000	$ 0.14
		6000	$ 0.14
		10000	$ 0.13
		14000	$ 0.13
		20000	$ 0.13
		50000	$ 0.12

Description

General part information

APB3227 Series

Green, Red 570nm Green, 630nm Red LED Indication - Discrete 2.1V Green, 1.95V Red 1210 (3225 Metric)
