Q1388PCE

Active

Hoffman Enclosures, Inc.

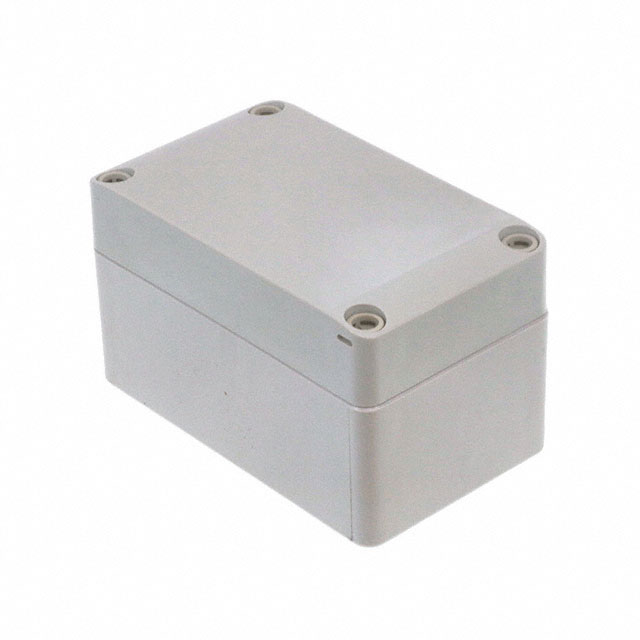

BOX PLASTIC GRAY 4.92"L X 3.07"W

Search across all available documentation for this part.

Active

Hoffman Enclosures, Inc.

BOX PLASTIC GRAY 4.92"L X 3.07"W

Technical Specifications

Parameters and characteristics for this part

Specification	Q1388PCE

Area (L x W)	15 in²
Area (L x W)	97 cm²
Color	Gray
Container Type	Box
Design	Cover Included
Features	PCB Supports, Card Guides, Sealing Gasket
Height [z]	75 mm
Height [z]	2.953 in
Material	Plastic, Polycarbonate
Ratings	4X, 12, IP67, 13, UL-508A, NEMA 4, 6
Size / Dimension [x]	125 mm
Size / Dimension [x]	4.921 in
Size / Dimension [y]	78 mm
Size / Dimension [y]	3.071 "
Thickness	3 mm
Thickness	0.118 in
Weight	0.5 lbs
Weight	226.8 g

Part	Thickness	Thickness	Features	Material	Container Type	Color	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Height [z]	Height [z]	Weight	Weight	Ratings	Area (L x W)	Area (L x W)	Design
Hoffman Enclosures, Inc. Q1388PCE	3 mm	0.118 in	Card Guides PCB Supports Sealing Gasket	Plastic Polycarbonate	Box	Gray	125 mm	4.921 in	78 mm	3.071 "	75 mm	2.953 in	0.5 lbs	226.8 g	12 13 4X 6 IP67 NEMA 4 UL-508A	15 in²	97 cm²	Cover Included

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Box Plastic, Polycarbonate Gray Cover Included 4.921" L x 3.071" W (125.00mm x 78.00mm) X 2.953" (75.00mm)
