R404756000

Active

Radiall USA, Inc.

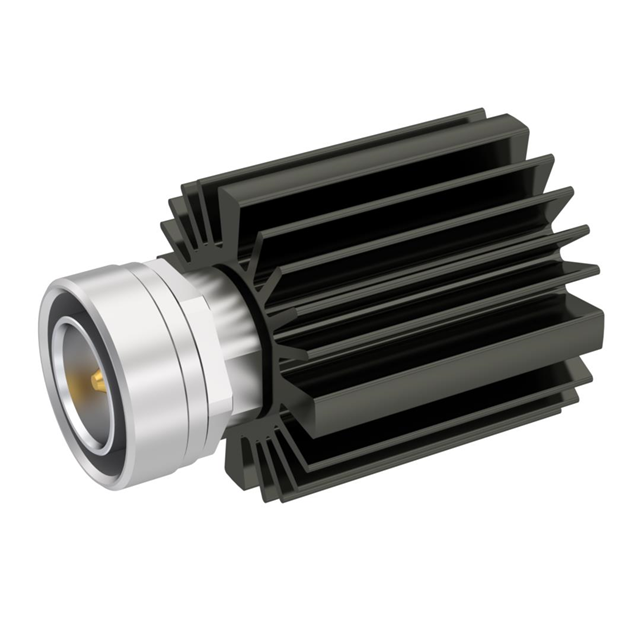

TERMINATION: 7-16 M 6 GHZ 30W

Search across all available documentation for this part.

Active

Radiall USA, Inc.

TERMINATION: 7-16 M 6 GHZ 30W

Technical Specifications

Parameters and characteristics for this part

Specification	R404756000

Body Finish	White Bronze
Body Material	Brass
Connector Style	7/16 DIN
Connector Type	Male Pin, Plug
Contact Finish	Gold
Contact Material	Beryllium Copper
Dielectric Material	Polytetrafluoroethylene (PTFE)
Frequency - Max [Max]	6000 MHz
Impedance	50 Ohms
Mounting Type	Free Hanging, Cap

Part	Connector Type	Dielectric Material	Mounting Type	Body Material	Contact Finish	Contact Material	Body Finish	Impedance	Frequency - Max [Max]	Connector Style
Radiall USA, Inc. R404756000	Male Pin Plug	Polytetrafluoroethylene (PTFE)	Cap Free Hanging	Brass	Gold	Beryllium Copper	White Bronze	50 Ohms	6000 MHz	7/16 DIN
Radiall USA, Inc. R404754000	Male Pin Plug	Polytetrafluoroethylene (PTFE)	Cap Free Hanging	Stainless Steel	Gold	Beryllium Copper		50 Ohms	6000 MHz	SMA

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 526.84

General part information

Terminator Coax Connector Plug, Male Pin 7/16 DIN 50 Ohms

Technical documentation and resources

No documents available
