09162083001

Active

HARTING Technology Group

HEAVY DUTY CONNECTOR, 108+PE, LESS CONTACTS, HAN DD HMC SERIES, INSERT, 109 CONTACTS, 24B, PLUG

Search across all available documentation for this part.

Active

HARTING Technology Group

HEAVY DUTY CONNECTOR, 108+PE, LESS CONTACTS, HAN DD HMC SERIES, INSERT, 109 CONTACTS, 24B, PLUG

Technical Specifications

Parameters and characteristics for this part

Specification	09162083001

Color	Gray
Connector Type	Insert without Contacts
Contact Type	Han® High Temp
Current Rating (Amps)	10 A
Gender	Male
Housing Material	Polycarbonate (PC)
Material Flammability Rating	UL94 V-0
Number of Positions	108+Ground
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-40 °C
Size	24 B
Termination Style	Crimp
Voltage Rating	250 VDC

Part	Material Flammability Rating	Voltage Rating	Gender	Color	Operating Temperature [Max]	Operating Temperature [Min]	Housing Material	Contact Type	Termination Style	Connector Type	Number of Positions	Size	Current Rating (Amps)
HARTING Technology Group 09162083001	UL94 V-0	250 VDC	Male	Gray	125 °C	-40 °C	Polycarbonate (PC)	Han® High Temp	Crimp	Insert without Contacts	108+Ground	24 B	10 A

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

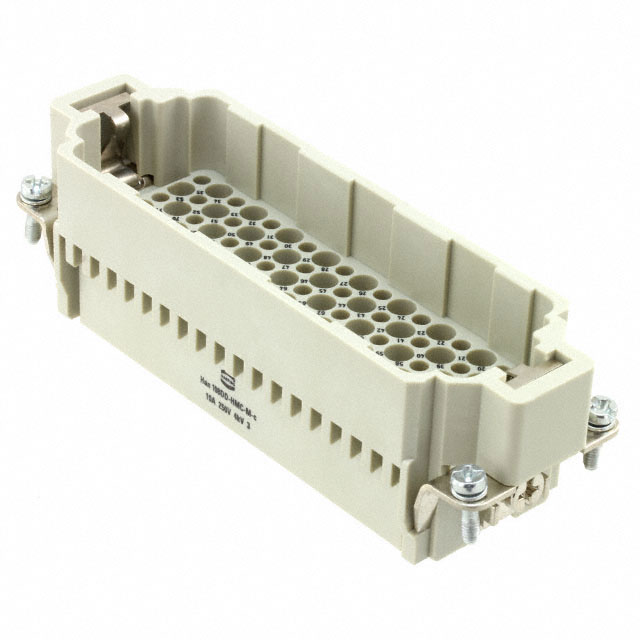

The 9162083001 is a 108-position heavy duty Connector Plug Insert made of polycarbonate. It has crimp terminal.
