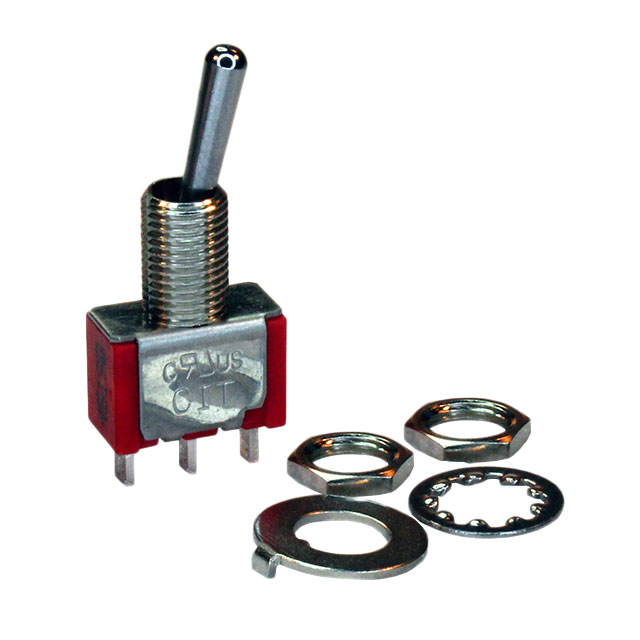

ANT11SEBQE

Active

CIT Relay and Switch

SWITCH TOGGLE SPDT 5A 120V

Search across all available documentation for this part.

Active

CIT Relay and Switch

SWITCH TOGGLE SPDT 5A 120V

Technical Specifications

Parameters and characteristics for this part

Part	Termination Style	Current Rating (Amps)	Actuator Length [x]	Voltage Rating - DC	Actuator Type	Operating Temperature [Max]	Operating Temperature [Min]	Mounting Type	Switch Function	Actuator Material	Bushing Thread	Circuit	Illumination	Electrical Life	Voltage Rating - AC
CIT Relay and Switch ANT11TFHQE	PC Pin	5 A	5.08 mm	28 V	Standard Round	85 °C	-40 °C	Through Hole Right Angle	On-On	Brass Chrome Plated	1/4-40	SPDT	Non-Illuminated	50000 Cycles	120 V
CIT Relay and Switch ANT11SE1HQE	PC Pin	5 A	10.67 mm	28 V	Standard Round	85 °C	-40 °C	Through Hole Right Angle	On-On	Brass Chrome Plated	Unthreaded	SPDT	Non-Illuminated	50000 Cycles	120 V
CIT Relay and Switch ANT11SEBQE	Solder Lug	5 A	10.67 mm	28 V	Standard Round	85 °C	-40 °C		On-On	Brass Chrome Plated	1/4-40	SPDT	Non-Illuminated	50000 Cycles	120 V

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Toggle Switch SPDT Panel Mount
