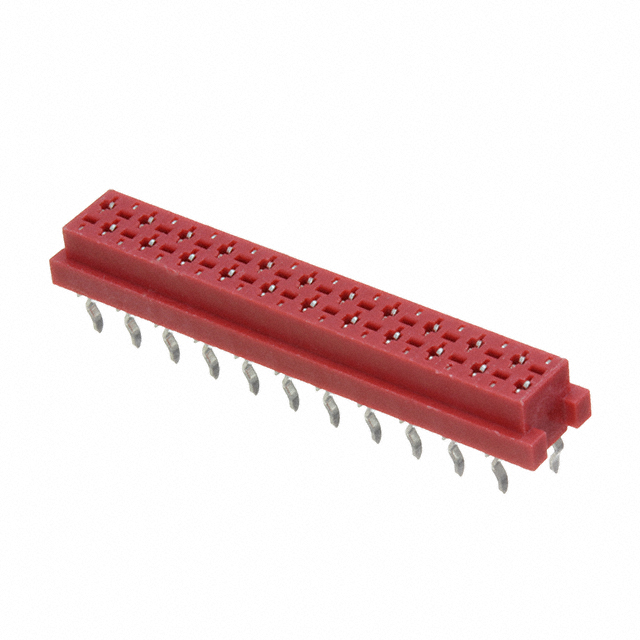

3521-22-0100-99

Active

CnC Tech, LLC

CONN RCPT 22POS 0.1 TIN PCB

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

3521-22-0100-99

Active

CnC Tech, LLC

CONN RCPT 22POS 0.1 TIN PCB

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	3521-22-0100-99

Connector Type	Receptacle
Contact Finish - Post	Tin
Contact Material	Bronze
Contact Type	Forked
Fastening Type	Push-Pull
Insulation Color	Red
Insulation Height [custom]	0.157 in
Insulation Height [custom]	4 mm
Insulation Material	Polyamide (PA9T), Nylon 9T
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Positions	22 positions
Number of Positions Loaded	All
Number of Rows	2
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Pitch - Mating	0.1 in
Pitch - Mating	2.54 mm
Style	Board to Board, Cable
Termination	Kinked Pin, Solder
Voltage Rating	500 V

3521 Series

Part	Contact Material	Contact Finish - Post	Contact Length - Post	Contact Length - Post	Style	Mounting Type	Voltage Rating	Fastening Type	Contact Type	Operating Temperature [Min]	Operating Temperature [Max]	Connector Type	Insulation Color	Pitch - Mating	Pitch - Mating	Number of Positions	Material Flammability Rating	Number of Positions Loaded	Termination	Insulation Height	Insulation Height	Number of Rows	Insulation Material	Insulation Height [custom]	Insulation Height [custom]
CnC Tech, LLC 3521-20-0200-99	Bronze	Tin	0.122 "	3.1 mm	Board to Board Cable	Through Hole Right Angle	500 V	Push-Pull	Forked	-40 °C	105 ░C	Receptacle	Red	0.1 in	2.54 mm	20	UL94 V-0	All	Kinked Pin Solder	0.197 in	5 mm	2	Nylon 9T Polyamide (PA9T)
CnC Tech, LLC 3521-04-0100-99	Bronze	Tin			Board to Board Cable	Through Hole	500 V	Push-Pull	Forked	-40 °C	105 ░C	Receptacle	Red	0.1 in	2.54 mm	4	UL94 V-0	All	Kinked Pin Solder			2	Nylon 9T Polyamide (PA9T)	0.157 in	4 mm
CnC Tech, LLC 3521-12-0200-99	Bronze	Tin	0.122 "	3.1 mm	Board to Board Cable	Through Hole Right Angle	500 V	Push-Pull	Forked	-40 °C	105 ░C	Receptacle	Red	0.1 in	2.54 mm	12	UL94 V-0	All	Kinked Pin Solder	0.197 in	5 mm	2	Nylon 9T Polyamide (PA9T)
CnC Tech, LLC 3521-10-0100-99	Bronze	Tin			Board to Board Cable	Through Hole	500 V	Push-Pull	Forked	-40 °C	105 ░C	Receptacle	Red	0.1 in	2.54 mm	10	UL94 V-0	All	Kinked Pin Solder			2	Nylon 9T Polyamide (PA9T)	0.157 in	4 mm
CnC Tech, LLC 3521-18-0100-99	Bronze	Tin			Board to Board Cable	Through Hole	500 V	Push-Pull	Forked	-40 °C	105 ░C	Receptacle	Red	0.1 in	2.54 mm	18	UL94 V-0	All	Kinked Pin Solder			2	Nylon 9T Polyamide (PA9T)	0.157 in	4 mm
CnC Tech, LLC 3521-22-0100-99	Bronze	Tin			Board to Board Cable	Through Hole	500 V	Push-Pull	Forked	-40 °C	105 ░C	Receptacle	Red	0.1 in	2.54 mm	22 positions	UL94 V-0	All	Kinked Pin Solder			2	Nylon 9T Polyamide (PA9T)	0.157 in	4 mm
CnC Tech, LLC 3521-24-0200-99	Bronze	Tin	0.122 "	3.1 mm	Board to Board Cable	Through Hole Right Angle	500 V	Push-Pull	Forked	-40 °C	105 ░C	Receptacle	Red	0.1 in	2.54 mm	24	UL94 V-0	All	Kinked Pin Solder	0.197 in	5 mm	2	Nylon 9T Polyamide (PA9T)
CnC Tech, LLC 3521-14-0200-99	Bronze	Tin	0.122 "	3.1 mm	Board to Board Cable	Through Hole Right Angle	500 V	Push-Pull	Forked	-40 °C	105 ░C	Receptacle	Red	0.1 in	2.54 mm	14	UL94 V-0	All	Kinked Pin Solder	0.197 in	5 mm	2	Nylon 9T Polyamide (PA9T)
CnC Tech, LLC 3521-14-0100-99	Bronze	Tin			Board to Board Cable	Through Hole	500 V	Push-Pull	Forked	-40 °C	105 ░C	Receptacle	Red	0.1 in	2.54 mm	14	UL94 V-0	All	Kinked Pin Solder			2	Nylon 9T Polyamide (PA9T)	0.157 in	4 mm
CnC Tech, LLC 3521-12-0101-99	Bronze	Tin			Board to Board Cable	Surface Mount	500 V	Push-Pull	Forked	-40 °C	105 ░C	Receptacle	Red	0.1 in	2.54 mm	12	UL94 V-0	All	Solder	0.197 in	5 mm	2	Nylon 9T Polyamide (PA9T)

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tube	1	$ 0.91
		10	$ 0.77
		100	$ 0.69
		950	$ 0.55

Description

General part information

3521 Series

22 Position Receptacle Connector 0.100" (2.54mm) Through Hole Tin
