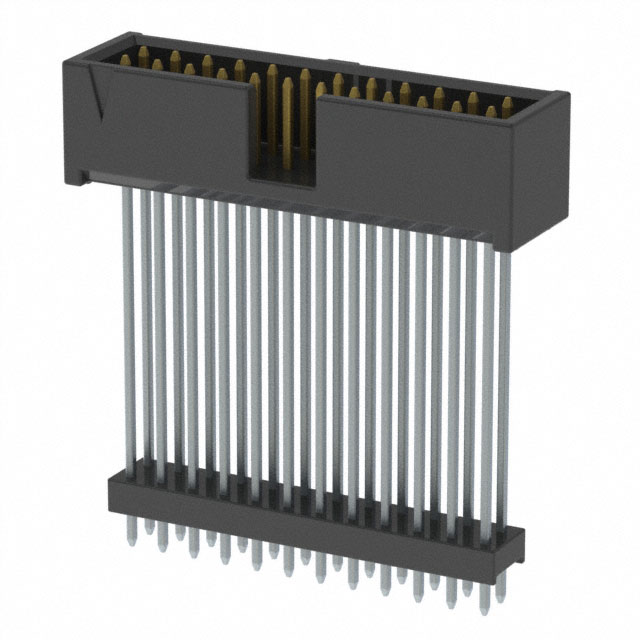

ZSS-112-09-S-D-1330

Active

Samtec Inc.

CONN HDR .100" 24POS

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

ZSS-112-09-S-D-1330

Active

Samtec Inc.

CONN HDR .100" 24POS

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	ZSS-112-09-S-D-1330

null

ZSS-112 Series

...

Part	Pitch - Mating	Pitch - Mating	Contact Length - Post [x]	Contact Length - Post [x]	Number of Positions	Insulation Height	Insulation Height	Number of Rows	Connector Type	Operating Temperature [Max]	Operating Temperature [Min]	Contact Shape	Overall Contact Length	Overall Contact Length	Material Flammability Rating	Fastening Type	Number of Positions Loaded	Insulation Material	Contact Length - Mating	Contact Length - Mating	Insulation Color	Mounting Type	Current Rating (Amps)	Shrouding	Style	Contact Type	Features	Termination	Contact Material	Contact Finish - Post	Contact Finish - Mating	Insulation Height [custom]	Insulation Height [custom]	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Contact Length - Post	Contact Length - Post	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Overall Contact Length [x]	Overall Contact Length [x]
Samtec Inc. ZSS-112-02-G-D-640
Samtec Inc. ZSS-112-09-S-D-1280
Samtec Inc. ZSS-112-03-T-S-665-LL	0.1 in	2.54 mm	0.165 in	4.19 mm	12	16.89 mm	0.665 in	1	Elevated Header	105 ░C	-55 °C	Square	0.83 in	21.08 mm	UL94 V-0	Push-Pull	All	Polyester Glass Filled	6.35 mm	0.25 in	Black	Through Hole	3 A	Shrouded - 4 Wall	Board to Board Cable	Male Pin	Keying Slot	Kinked Pin Solder	Phosphor Bronze	Tin
Samtec Inc. ZSS-112-06-F-D-840	0.1 in	2.54 mm	0.29 "	7.37 mm	24			2	Elevated Header	125 °C	-55 °C	Square	1.13 in	28.7 mm	UL94 V-0	Push-Pull	All	Polyester Glass Filled	6.35 mm	0.25 in	Black	Through Hole	3 A	Shrouded - 4 Wall	Board to Board Cable	Male Pin	Keying Slot	Solder	Phosphor Bronze	Tin	Gold	0.84 in	21.34 mm	2.54 mm	0.1 in	3 µin	0.076 µm
Samtec Inc. ZSS-112-01-G-S-450	0.1 in	2.54 mm			12	11.43 mm	0.45 in	1	Elevated Header	125 °C	-55 °C	Square			UL94 V-0	Push-Pull	All	Polyester Glass Filled	6.35 mm	0.25 in	Black	Through Hole	3 A	Shrouded - 4 Wall	Board to Board Cable	Male Pin	Keying Slot	Solder	Phosphor Bronze	Gold	Gold					10 çin	0.25 çm	0.18 in	4.57 mm	3 µin	0.076 µm	0.63 "	16 mm
Samtec Inc. ZSS-112-02-S-S-630	0.1 in	2.54 mm			12	16 mm	0.63 in	1	Elevated Header	125 °C	-55 °C	Square	0.73 in	18.54 mm	UL94 V-0	Push-Pull	All	Polyester Glass Filled	6.35 mm	0.25 in	Black	Through Hole	3 A	Shrouded - 4 Wall	Board to Board Cable	Male Pin	Keying Slot	Solder	Phosphor Bronze	Tin	Gold					30 Áin	0.76 Ám	0.1 in	2.54 mm
Samtec Inc. ZSS-112-03-T-S-665	0.1 in	2.54 mm	0.165 in	4.19 mm	12	16.9 mm	0.665 in	1	Elevated Header	105 ░C	-55 °C	Square	0.83 in	21.08 mm	UL94 V-0	Push-Pull	All	Polyester Glass Filled	6.35 mm	0.25 in	Black	Through Hole	3 A	Shrouded - 4 Wall	Board to Board Cable	Male Pin	Keying Slot	Solder	Phosphor Bronze	Tin
Samtec Inc. ZSS-112-04-G-D-840	0.1 in	2.54 mm			24			2	Elevated Header	125 °C	-55 °C	Square	0.93 in	23.62 mm	UL94 V-0	Push-Pull	All	Polyester Glass Filled	6.35 mm	0.25 in	Black	Through Hole	3 A	Shrouded - 4 Wall	Board to Board Cable	Male Pin	Keying Slot	Solder	Phosphor Bronze	Gold	Gold	0.84 in	21.34 mm	2.54 mm	0.1 in	10 çin	0.25 çm	0.09 "	2.29 mm	3 µin	0.076 µm
Samtec Inc. ZSS-112-01-G-D-450	0.1 in	2.54 mm			24	11.43 mm	0.45 in	2	Elevated Header	125 °C	-55 °C	Square			UL94 V-0	Push-Pull	All	Polyester Glass Filled	6.35 mm	0.25 in	Black	Through Hole	3 A	Shrouded - 4 Wall	Board to Board Cable	Male Pin	Keying Slot	Solder	Phosphor Bronze	Gold	Gold			2.54 mm	0.1 in	10 çin	0.25 çm	0.18 in	4.57 mm	3 µin	0.076 µm	0.63 "	16 mm
Samtec Inc. ZSS-112-09-S-D-1330

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 5.87

Description

General part information

ZSS-112 Series

Connector Header position

Documents

Technical documentation and resources
