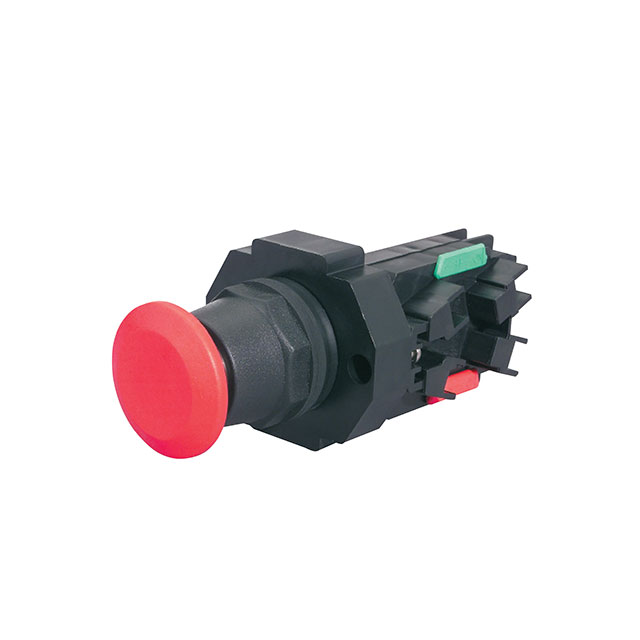

HPBO-HPPMCRD-CBFS

Active

c3controls

SWITCH E-STOP PULL RESET 10A 72V

Search across all available documentation for this part.

Active

c3controls

SWITCH E-STOP PULL RESET 10A 72V

Technical Specifications

Parameters and characteristics for this part

Specification	HPBO-HPPMCRD-CBFS

Circuit	DPST-NO/NC
Current Rating (Amps)	10 A, 5 A
Ingress Protection	IP65 - Dust Tight, Water Resistant
Mounting Type	Panel Mount, Rear
Operating Temperature [Max]	55 °C
Operating Temperature [Min]	-40 °C
Panel Cutout Dimensions [diameter]	30 mm
Reset Operation	Pull
Switch Function	On-Off, Off-On
Termination Style	Screw Terminal
Voltage Rating - AC	72 V
Voltage Rating - DC	28 V

Part	Voltage Rating - AC	Ingress Protection	Switch Function	Operating Temperature [Min]	Operating Temperature [Max]	Current Rating (Amps)	Circuit	Voltage Rating - DC	Panel Cutout Dimensions [diameter]	Reset Operation	Termination Style	Mounting Type
c3controls HPBO-HPPMCRD-CBFS	72 V	IP65 - Dust Tight Water Resistant	Off-On On-Off	-40 °C	55 °C	5 A 10 A	DPST-NO/NC	28 V	30 mm	Pull	Screw Terminal	Panel Mount Rear

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 120.24

General part information

SWITCH E-STOP PULL RESET 10A 72V

Technical documentation and resources

No documents available
