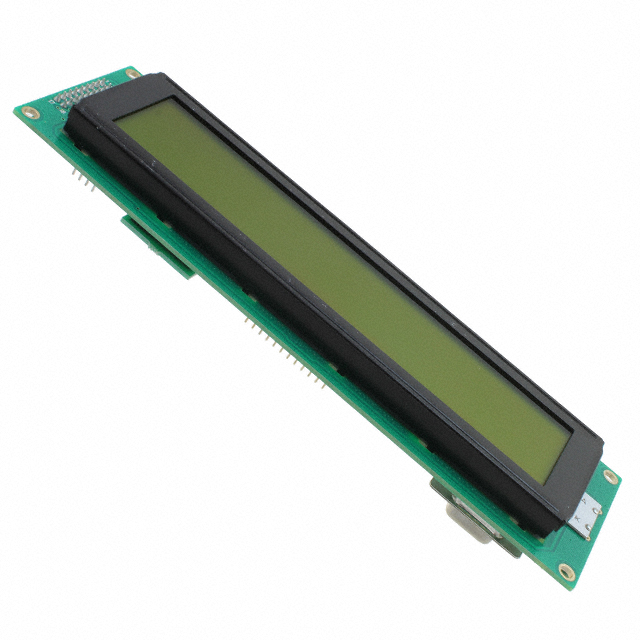

LK404-25-VPT

Active

Matrix Orbital

LCD MODULE 160 DIG 40 X 4

Search across all available documentation for this part.

Active

Matrix Orbital

LCD MODULE 160 DIG 40 X 4

Technical Specifications

Parameters and characteristics for this part

Part	Character Format [y]	Character Format [x]	Outline L x W x H [x]	Outline L x W x H [z]	Outline L x W x H [y]	Viewing Area [x]	Viewing Area [y]	Display Format [y]	Display Format [x]	Number of Characters	Character Size [y]	Character Size [z]	Dot Size [y]	Dot Size [x]	Interface	Voltage - Supply [Min]	Voltage - Supply [Max]	Background Color	Text Color	Display Type	Operating Temperature [Min]	Operating Temperature [Max]
Matrix Orbital LK404-25-VPT	8 Dots	5 Dots	190 mm	9.5 mm	54 mm	148 mm	42.9 mm	4	40	160	2.78 mm	4.89 mm	0.55 mm	0.5 mm	I2C RS-232 TTL	4.75 V	5.25 V
Matrix Orbital LK404-25-E	8 Dots	5 Dots	190 mm	29.18 mm	54 mm	140.45 mm	23.16 mm	4	40	160	2.78 mm	4.89 mm	0.55 mm	0.5 mm	I2C RS-232 TTL	4.75 V	5.25 V	Yellow/Green	Black	LCD - Monochrome	-20 C	70 °C
Matrix Orbital LK404-25	8 Dots	5 Dots	190 mm	29.18 mm	54 mm	140.45 mm	23.16 mm	4	40	160	2.78 mm	4.89 mm	0.55 mm	0.5 mm	I2C RS-232 TTL	4.75 V	5.25 V	Yellow/Green	Black	LCD - Monochrome

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 119.95

General part information

Character Display Module 5 x 8 Dots I2C, RS-232, TTL 190.00mm x 54.00mm x 9.50mm
