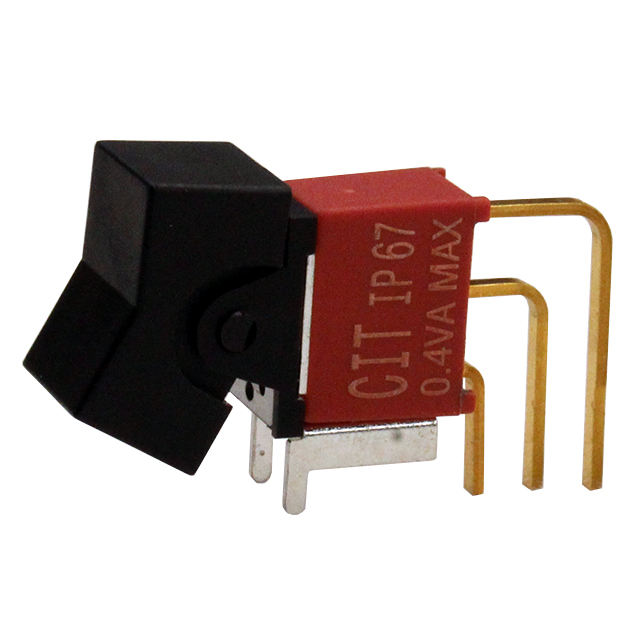

ASR11R11P2VR

Active

CIT Relay and Switch

SPDT 30,000 TIMES 5A PCPIN 120V 28V PLUGIN ROCKER SWITCHES ROHS

Search across all available documentation for this part.

Active

CIT Relay and Switch

SPDT 30,000 TIMES 5A PCPIN 120V 28V PLUGIN ROCKER SWITCHES ROHS

Technical Specifications

Parameters and characteristics for this part

Specification	ASR11R11P2VR

Actuator Marking	No Marking
Actuator Type	Concave (Curved)
Approval Agency	cULus
Circuit	SPDT
Color - Actuator/Cap	Black
Current Rating (Amps)	5 A
Electrical Life	30000 Cycles
Ingress Protection	IP67 - Dust Tight, Waterproof
Mounting Type	Through Hole, Vertical, Right Angle
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Switch Function	On-On
Termination Style	PC Pin
Voltage Rating - AC	120 V
Voltage Rating - DC	28 V

Part	Approval Agency	Mounting Type	Voltage Rating - DC	Actuator Marking	Color - Actuator/Cap	Termination Style	Switch Function	Operating Temperature [Max]	Operating Temperature [Min]	Circuit	Ingress Protection	Electrical Life	Current Rating (Amps)	Voltage Rating - AC	Actuator Type
CIT Relay and Switch ASR11R11P2VR	cULus	Right Angle Through Hole Vertical	28 V	No Marking	Black	PC Pin	On-On	85 °C	-40 °C	SPDT	IP67 - Dust Tight Waterproof	30000 Cycles	5 A	120 V	Concave (Curved)

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Rocker Switch SPDT 5A (AC/DC) 120 V Through Hole, Right Angle, Vertical
