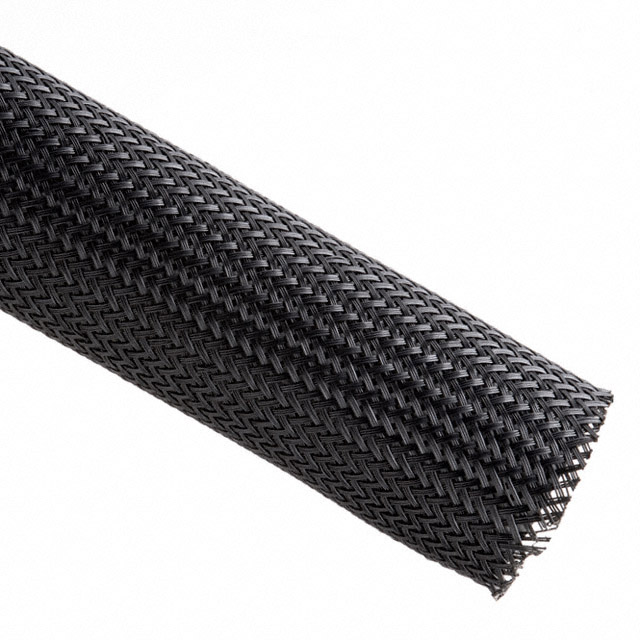

SDN1.75BK100

Active

Techflex

EXPAND SLEEVE 1.75" X 100' BLK

Search across all available documentation for this part.

Active

Techflex

EXPAND SLEEVE 1.75" X 100' BLK

Technical Specifications

Parameters and characteristics for this part

Specification	SDN1.75BK100

Abrasion Protection	Abrasion and Cut Resistant
Color	Black
Diameter - Inside, Expanded [diameter]	69.85 mm
Diameter - Inside, Expanded [diameter]	2.75 in
Diameter - Inside, Non-Expanded [diameter]	1.75 in
Diameter - Inside, Non-Expanded [diameter]	44.45 mm
Environment Protection	UV Resistant
Features	Clean Cut, Chemical Resistant, Solvent Resistant
Length	100 ft
Length	30.48 m
Liquid Protection	Salt Water Resistant, Gasoline Resistant
Material	Polyamide Monofilament, Halogen Free
Operating Temperature [Max]	150 °C
Operating Temperature [Min]	-45 °C
Type	Sleeve
Type Attributes	Expandable
Wall Thickness	0.05 in
Wall Thickness	1.27 mm

Part	Features	Diameter - Inside, Expanded [diameter]	Diameter - Inside, Expanded [diameter]	Operating Temperature [Max]	Operating Temperature [Min]	Wall Thickness	Wall Thickness	Color	Liquid Protection	Type	Material	Type Attributes	Environment Protection	Abrasion Protection	Length	Length	Diameter - Inside, Non-Expanded [diameter]	Diameter - Inside, Non-Expanded [diameter]
Techflex SDN1.75BK100	Chemical Resistant Clean Cut Solvent Resistant	69.85 mm	2.75 in	150 °C	-45 °C	0.05 in	1.27 mm	Black	Gasoline Resistant Salt Water Resistant	Sleeve	Polyamide Monofilament Halogen Free	Expandable	UV Resistant	Abrasion and Cut Resistant	100 ft	30.48 m	1.75 in	44.45 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Spool	1	$ 152.84

General part information

Sleeve X 100' (30.48m) Black
