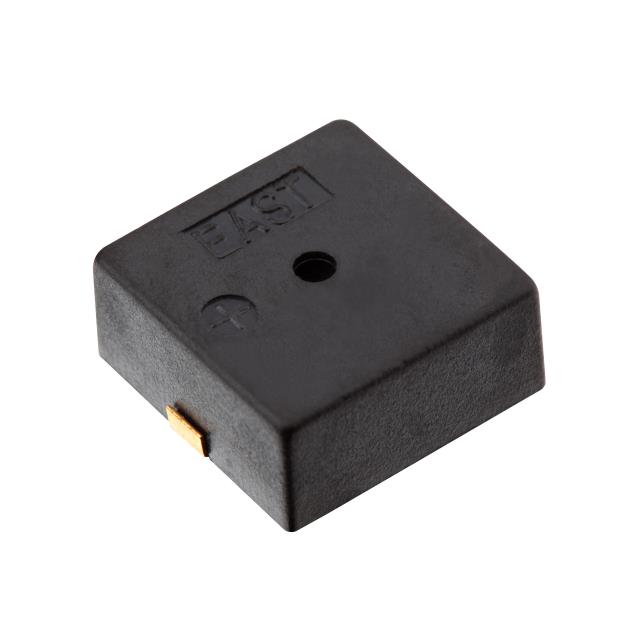

SFM-1740S
ActiveEast Electronics
BUZZER 12V 17.7X17.7MM TH
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
SFM-1740S
ActiveEast Electronics
BUZZER 12V 17.7X17.7MM TH
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | SFM-1740S |
|---|---|
| Current - Supply | 8 mA |
| Frequency | 4 kHz |
| Height - Seated (Max) [Max] [z] | 0.299 in |
| Height - Seated (Max) [Max] [z] | 7.6 mm |
| Mounting Type | Through Hole |
| Operating Mode | Continuous |
| Operating Temperature [Max] | 70 °C |
| Operating Temperature [Min] | -20 C |
| Size / Dimension [x] | 17.7 mm |
| Size / Dimension [x] | 0.697 in |
| Size / Dimension [y] | 17.7 mm |
| Size / Dimension [y] | 0.697 " |
| Sound Pressure Level (SPL) | 85 dB |
| Termination | PC Pins |
| Voltage - Rated | 12 VDC |
| Voltage Range [Max] | 16 V |
| Voltage Range [Min] | 6 VDC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tray | 1 | $ 3.52 | |
| 100 | $ 2.32 | |||
| 1000 | $ 1.90 | |||
Description
General part information
SFM-1740 Series
Buzzers 12 V 8mA 4kHz 85dB @ 12V, 10cm Through Hole PC Pins
