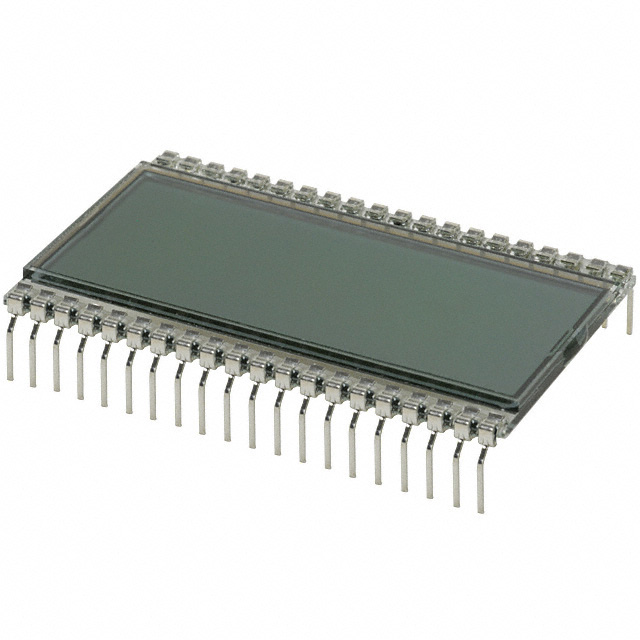

LCD-S3X1C50TR/B
ActiveLumex Opto/Components Inc.
LCD MOD 3.5DIG 3.5 X 1 REFLECTIV
Deep-Dive with AI
Search across all available documentation for this part.
LCD-S3X1C50TR/B
ActiveLumex Opto/Components Inc.
LCD MOD 3.5DIG 3.5 X 1 REFLECTIV
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | LCD-S3X1C50TR/B |
|---|---|
| Background Color | Gray |
| Backlight | Without Backlight |
| Character Format | 7-Segment |
| Character Size [y] | 7.62 mm |
| Character Size [z] | 12.7 mm |
| Display Format [x] | 3.5 |
| Display Format [y] | 1 |
| Display Mode | Reflective |
| Display Type | TN - Twisted Nematic |
| Number of Characters | 3.5 |
| Outline L x W x H [x] | 50.8 mm |
| Outline L x W x H [y] | 30.48 mm |
| Outline L x W x H [z] | 2.8 mm |
| Viewing Area [x] | 45.72 mm |
| Viewing Area [y] | 16.51 mm |
| Voltage - Supply [Max] | 5 V |
| Voltage - Supply [Min] | 3 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tray | 1 | $ 4.32 | |
| 10 | $ 3.05 | |||
| 210 | $ 2.50 | |||
| 630 | $ 2.11 | |||
| 1050 | $ 1.93 | |||
| 2100 | $ 1.85 | |||
| 5040 | $ 1.82 | |||
Description
General part information
LCD-S3 Series
Character Display Module Reflective 7-Segment TN - Twisted Nematic Without Backlight 50.80mm x 30.48mm x 2.80mm
Documents
Technical documentation and resources
No documents available
