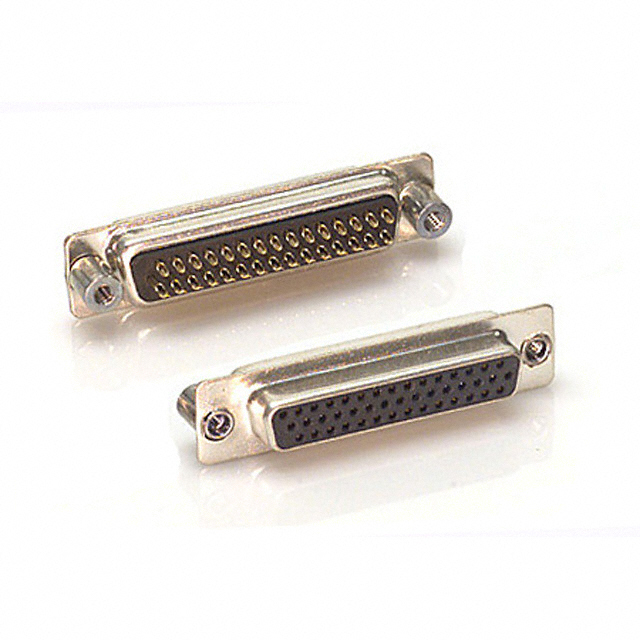

180-044-202L021

Obsolete

MH Connectors

CONN D-SUB HD RCPT 44POS PNL MNT

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

180-044-202L021

Obsolete

MH Connectors

CONN D-SUB HD RCPT 44POS PNL MNT

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	180-044-202L021

Connector Style	High Density, D-Sub
Connector Type	Receptacle, Female Sockets
Contact Finish	Gold
Contact Finish Thickness	Flash
Contact Material	Brass
Contact Type	Signal
Current Rating (Amps)	5 A
Dielectric Material	Polybutylene Terephthalate (PBT)
Features	Shielded
Flange Feature	Cable Side
Material Flammability Rating	UL94 V-0
Number of Positions	44
Number of Rows	3
Shell Size, Connector Layout [custom]	B, DB
Shell Size, Connector Layout [x]	3

180-044 Series

Part	Connector Style	Features	Dielectric Material	Number of Positions	Material Flammability Rating	Connector Type	Flange Feature	Shell Size, Connector Layout [x]	Shell Size, Connector Layout [custom]	Contact Finish Thickness	Contact Finish	Color	Current Rating (Amps)	Termination	Contact Type	Mounting Type	Number of Rows	Shell Material, Finish	Note	Contact Material	Contact Form
MH Connectors 180-044-112-021	D-Sub High Density	Grounding Indents	Polyester Glass Filled	44	UL94 V-0	Male Pins Plug	4-40 Board Side	3	B DB	Flash	Gold	Black	2 A	Solder	Signal	Panel Mount Through Hole	3
MH Connectors 180-044-273L020	D-Sub High Density			44		Receptacle for Female Contacts	Cable Side	3	B DB						Signal	Free Hanging (In-Line)	3	Nickel Plated Steel	Contacts Not Included
MH Connectors 180-044-272L030	D-Sub High Density	Shielded		44		Receptacle for Female Contacts	4-40	3	B DB						Signal	Free Hanging (In-Line)	3		Contacts Not Included
MH Connectors 180-044-101L021	D-Sub High Density	Shielded	Polybutylene Terephthalate (PBT)	44	UL94 V-0	Male Pins Plug	Cable Side	3	B DB	Flash	Gold		5 A		Signal		3	Steel Yellow Chromate Plated		Brass
MH Connectors 180-044-213R001	D-Sub High Density	Shielded	Polybutylene Terephthalate (PBT)	44	UL94 V-0	Receptacle Female Sockets	Housing/Shell (Unthreaded)	3	B DB	Flash	Gold		3 A	Solder	Signal	Panel Mount Through Hole	3	Nickel Plated Steel		Brass
MH Connectors 180-044-201L001	D-Sub High Density	Shielded	Polybutylene Terephthalate (PBT)	44	UL94 V-0	Receptacle Female Sockets	Housing/Shell (Unthreaded)	3	B DB	Flash	Gold		5 A		Signal		3	Steel Yellow Chromate Plated		Brass	Stamped
MH Connectors 180-044-202L021	D-Sub High Density	Shielded	Polybutylene Terephthalate (PBT)	44	UL94 V-0	Receptacle Female Sockets	Cable Side	3	B DB	Flash	Gold		5 A		Signal		3			Brass
MH Connectors 180-044-212-001	D-Sub High Density		Polyester Glass Filled	44	UL94 V-0	Receptacle Female Sockets	Housing/Shell (Unthreaded)	3	B DB	Flash	Gold	Black	2 A	Solder	Signal	Panel Mount Through Hole	3
MH Connectors 180-044-102L031	D-Sub High Density	Grounding Indents Shielded	Polybutylene Terephthalate (PBT)	44	UL94 V-0	Male Pins Plug	4-40	3	B DB	Flash	Gold		5 A		Signal		3			Brass
MH Connectors 180-044-272L020	D-Sub High Density	Shielded		44		Receptacle for Female Contacts	Cable Side	3	B DB						Signal	Free Hanging (In-Line)	3		Contacts Not Included

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Description

General part information

180-044 Series

44 Position D-Sub, High Density Receptacle, Female Sockets Connector
