5126.013.012

Active

Flexa

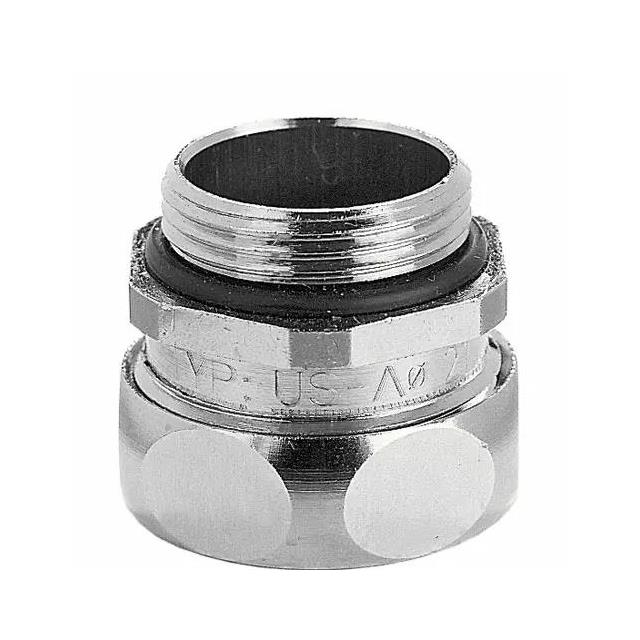

RGE METAL STRAIGHT CONNECTOR, M1

Search across all available documentation for this part.

Active

Flexa

RGE METAL STRAIGHT CONNECTOR, M1

Technical Specifications

Parameters and characteristics for this part

Specification	5126.013.012

Color	Silver
Ingress Protection	IP66
Material	Brass, Nickel Plated
Operating Temperature [Max]	120 °C
Operating Temperature [Min]	-40 °C
Outside Cable Diameter (Max) [Max] [diameter]	1.1 in
Outside Cable Diameter (Max) [Max] [diameter]	27.94 mm
Outside Cable Diameter (Min) [Min] [diameter]	8.89 mm
Outside Cable Diameter (Min) [Min] [diameter]	0.35 "
Thread Length	0.39 in
Thread Length	9.91 mm
Thread Size	M12x1.5
Type	Cable Gland

Part	Color	Thread Size	Material	Outside Cable Diameter (Max) [Max] [diameter]	Outside Cable Diameter (Max) [Max] [diameter]	Operating Temperature [Min]	Operating Temperature [Max]	Outside Cable Diameter (Min) [Min] [diameter]	Outside Cable Diameter (Min) [Min] [diameter]	Type	Ingress Protection	Thread Length	Thread Length
Flexa 5126.013.012	Silver	M12x1.5	Brass Nickel Plated	1.1 in	27.94 mm	-40 °C	120 °C	8.89 mm	0.35 "	Cable Gland	IP66	0.39 in	9.91 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	1	$ 361.80

General part information

Cable Gland Brass, Nickel Plated M12x1.5 Silver
