ZXT2M322TA

Obsolete

Diodes Inc

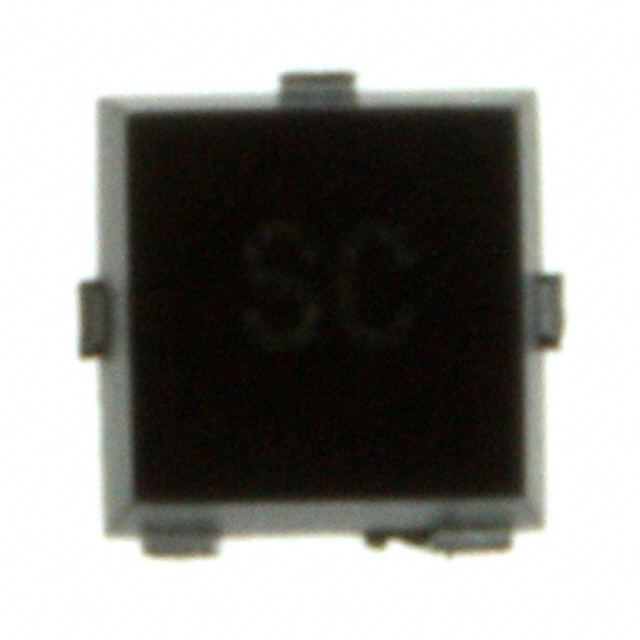

TRANS PNP 20V 3.5A 3MLP/DFN

Search across all available documentation for this part.

Obsolete

Diodes Inc

TRANS PNP 20V 3.5A 3MLP/DFN

Technical Specifications

Parameters and characteristics for this part

Specification	ZXT2M322TA

Current - Collector (Ic) (Max) [Max]	3.5 A
Current - Collector Cutoff (Max) [Max]	25 nA
DC Current Gain (hFE) (Min) @ Ic, Vce [Min]	150 hFE
Frequency - Transition	180 MHz
Mounting Type	Surface Mount
Operating Temperature [Max]	150 °C
Operating Temperature [Min]	-55 °C
Package / Case	3-PowerSMD, Flat Leads
Power - Max [Max]	3 W
Supplier Device Package	3-MLP/DFN (2x2)
Transistor Type	PNP
Vce Saturation (Max) @ Ib, Ic	300 mV
Voltage - Collector Emitter Breakdown (Max)	20 V

Part	Transistor Type	Mounting Type	Operating Temperature [Min]	Operating Temperature [Max]	DC Current Gain (hFE) (Min) @ Ic, Vce [Min]	Voltage - Collector Emitter Breakdown (Max)	Vce Saturation (Max) @ Ib, Ic	Frequency - Transition	Power - Max [Max]	Supplier Device Package	Current - Collector Cutoff (Max) [Max]	Package / Case	Current - Collector (Ic) (Max) [Max]
Diodes Inc ZXT2M322TA	PNP	Surface Mount	-55 °C	150 °C	150 hFE	20 V	300 mV	180 MHz	3 W	3-MLP/DFN (2x2)	25 nA	3-PowerSMD Flat Leads	3.5 A

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Bipolar (BJT) Transistor PNP 20 V 3.5 A 180MHz 3 W Surface Mount 3-MLP/DFN (2x2)
