2SC536300L

Obsolete

Panasonic Industrial Automation Sales

TRANS NPN 6V 0.03A SSMINI3

Search across all available documentation for this part.

Obsolete

Panasonic Industrial Automation Sales

TRANS NPN 6V 0.03A SSMINI3

Technical Specifications

Parameters and characteristics for this part

Specification	2SC536300L

Current - Collector (Ic) (Max) [Max]	30 mA
DC Current Gain (hFE) (Min) @ Ic, Vce [Min]	40
Frequency - Transition	10 GHz
Gain	6.5 dBi
Mounting Type	Surface Mount
Noise Figure (dB Typ @ f)	1.7 dB
Operating Temperature	125 ¯C

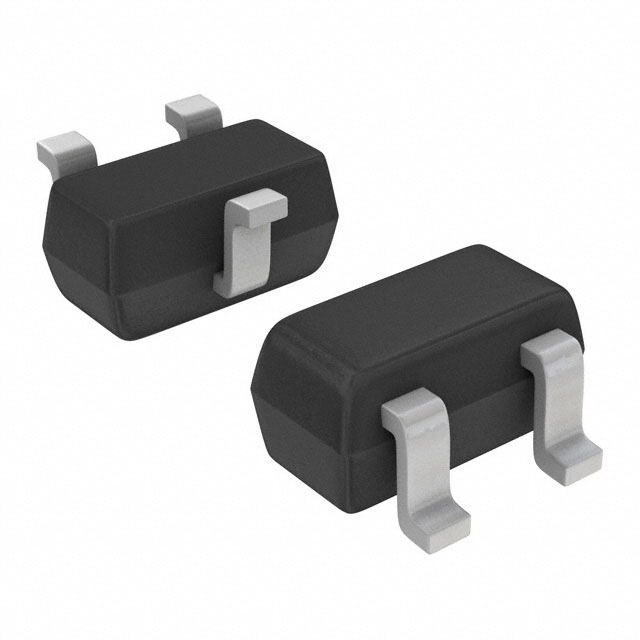

Package / Case	SC-75, SOT-416
Power - Max [Max]	125 mW
Supplier Device Package	SSmini3-G1
Transistor Type	NPN
Voltage - Collector Emitter Breakdown (Max)	6 V

Part	Frequency - Transition	Current - Collector (Ic) (Max) [Max]	Gain	DC Current Gain (hFE) (Min) @ Ic, Vce [Min]	Operating Temperature	Voltage - Collector Emitter Breakdown (Max)	Noise Figure (dB Typ @ f)	Mounting Type	Supplier Device Package	Package / Case	Power - Max [Max]	Transistor Type
Panasonic Industrial Automation Sales 2SC536300L	10 GHz	30 mA	6.5 dBi	40	125 ¯C	6 V	1.7 dB	Surface Mount	SSmini3-G1	SC-75 SOT-416	125 mW	NPN

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

RF Transistor NPN 6V 30mA 10GHz 125mW Surface Mount SSmini3-G1
