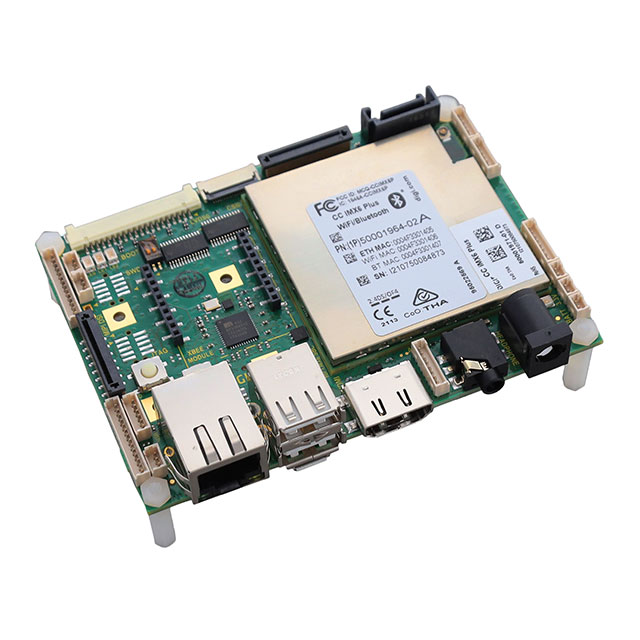

CC-SB-WMX-KK8D
ActiveDigi
SBC 1.2GHZ 4 CORE 2GB/- RAM
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
CC-SB-WMX-KK8D
ActiveDigi
SBC 1.2GHZ 4 CORE 2GB/- RAM
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | CC-SB-WMX-KK8D |
|---|---|
| Core Processor | i.MX6Quad, ARM Cortex-A9 |
| Digital I/O Lines | 12 |
| Ethernet | GbE |
| Form Factor | Pico-ITX |
| Number of Cores | 4 |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| RAM Capacity/Installed | 2 GB |
| RAM Capacity/Installed | - |
| RS-232 (422, 485) | 1 |
| Size / Dimension [x] | 2.83 " |
| Size / Dimension [x] | 71.88 mm |
| Size / Dimension [y] | 100.07 mm |
| Size / Dimension [y] | 3.94 in |
| Speed | 1.2 GHz |
| Storage Interface | SATA, eMMC, SD |
| USB | USB 2.0 (4) |
| Video Outputs | LCD, MIPI-DSI, LVDS, HDMI |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 652.19 | |
Description
General part information
CC-SB-WMX Series
Single Board Computer 1.2GHz 4 Core 2GB/- RAM ARM Cortex-A9, i.MX6Quad
Documents
Technical documentation and resources
