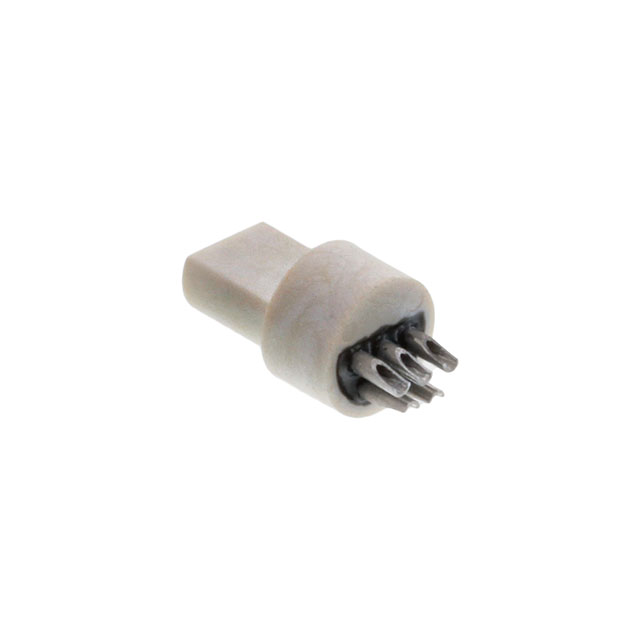

A22000-001

Active

Omnetics

CONN PLUG MALE 5POS SOLDER CUP

Search across all available documentation for this part.

Active

Omnetics

CONN PLUG MALE 5POS SOLDER CUP

Technical Specifications

Parameters and characteristics for this part

Specification	A22000-001

Color	Natural
Connector Type	Plug, Male Pins
Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	1.27 µm
Contact Finish Thickness - Mating	50 µin
Contact Material	Beryllium Copper
Current Rating (Amps)	3 A
Fastening Type	Push-Pull
Insert Material	Liquid Crystal Polymer (LCP)
Mounting Type	Free Hanging (In-Line)
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Orientation	Keyed
Primary Material	Plastic
Shell Material	Liquid Crystal Polymer (LCP)
Shielding	Unshielded

Part	Current Rating (Amps)	Mounting Type	Shielding	Orientation	Contact Finish - Mating	Contact Material	Primary Material	Shell Material	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Insert Material	Fastening Type	Color	Connector Type	Operating Temperature [Min]	Operating Temperature [Max]
Omnetics A22000-001	3 A	Free Hanging (In-Line)	Unshielded	Keyed	Gold	Beryllium Copper	Plastic	Liquid Crystal Polymer (LCP)	1.27 µm	50 µin	Liquid Crystal Polymer (LCP)	Push-Pull	Natural	Male Pins Plug	-55 °C	125 °C

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

5 Position Circular Connector Plug, Male Pins Solder Cup
