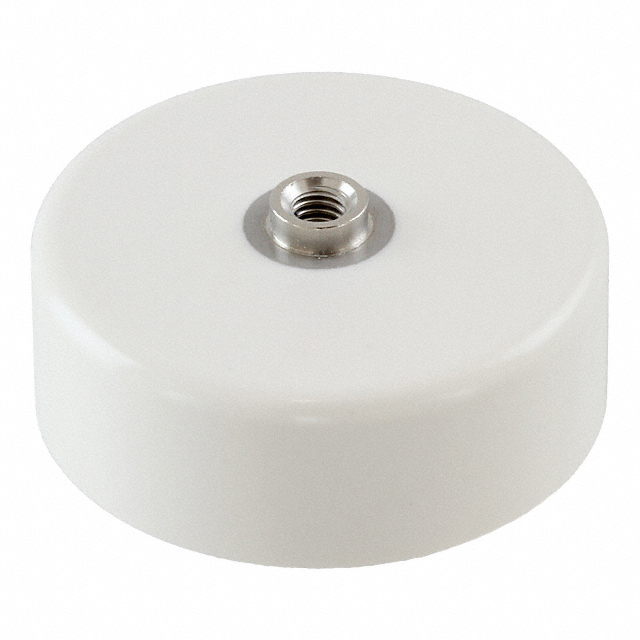

DHS4E4C192KL2B

Obsolete

Murata Power Solutions Inc.

CAP CER 1900PF 15KV N4700 DISK

Search across all available documentation for this part.

Obsolete

Murata Power Solutions Inc.

CAP CER 1900PF 15KV N4700 DISK

Technical Specifications

Parameters and characteristics for this part

Part	Tolerance	Mounting Type	Operating Temperature [Min]	Operating Temperature [Max]	Package / Case	Size / Dimension [diameter]	Size / Dimension [z]	Size / Dimension [diameter]	Size / Dimension [z]	Features	Temperature Coefficient	Voltage - Rated	Voltage - Rated	Capacitance	Applications	Size / Dimension [x]	Size / Dimension [x]
Murata Power Solutions Inc. DHS4E4C192KL2B	10 %	Requires Holder	20 °C	85 °C	Disk Metal Fitting - Threaded	1.496 "	0.768 in	38 mm	19.5 mm	High Voltage	N4700	15000 V	15 kV	1900 pF	General Purpose
Murata Power Solutions Inc. DHS4E4C532KT2B	10 %	Requires Holder	20 °C	85 °C	Disk Metal Fitting - Threaded	2.362 in		60 mm		High Voltage	N4700	15000 V	15 kV	5300 pF	General Purpose	19.5 mm	0.768 "

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

1900 pF ±10% 15000V (15kV) Ceramic Capacitor N4700 Disk, Metal Fitting - Threaded
