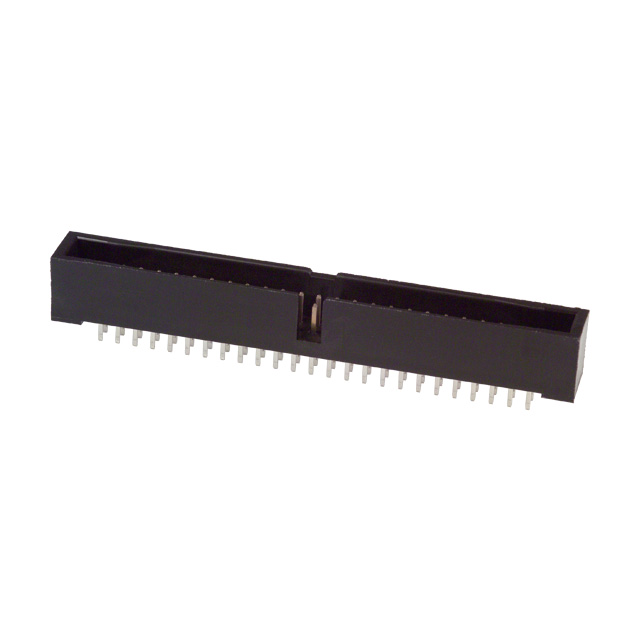

A3E-50PA-2DSA

Obsolete

Hirose Electric USA, Inc.

CONN HEADER VERT 50POS 2MM

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

A3E-50PA-2DSA

Obsolete

Hirose Electric USA, Inc.

CONN HEADER VERT 50POS 2MM

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	A3E-50PA-2DSA

Connector Type	Header
Contact Finish - Mating	Gold
Contact Finish - Post	Tin
Contact Finish Thickness - Mating	0.203 Ám
Contact Finish Thickness - Mating	8 Áin
Contact Finish Thickness - Post	2 çm
Contact Finish Thickness - Post	78.7 çin
Contact Length - Post	0.118 in
Contact Length - Post	3 mm
Contact Material	Brass
Contact Shape	Square
Contact Type	Male Pin
Current Rating (Amps)	0.5 A
Fastening Type	Push-Pull
Features	Keying Slot
Insulation Color	Black
Insulation Height	0.31 in
Insulation Height	7.87 mm
Insulation Material	Polyamide (PA), Nylon
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Positions	50
Number of Positions Loaded	All
Number of Rows	2
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-55 °C
Pitch - Mating [x]	0.079 in
Pitch - Mating [x]	2 mm
Row Spacing - Mating	0.079 in
Row Spacing - Mating	2 mm
Shrouding	Shrouded - 4 Wall
Style	Board to Board, Cable
Termination	Solder
Voltage Rating	12 V

A3E-50PA Series

Part	Termination	Contact Length - Post	Contact Length - Post	Number of Rows	Features	Insulation Color	Connector Type	Contact Finish - Mating	Pitch - Mating [x]	Pitch - Mating [x]	Voltage Rating	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Contact Finish - Post	Material Flammability Rating	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Operating Temperature [Max]	Operating Temperature [Min]	Shrouding	Current Rating (Amps)	Insulation Material	Mounting Type	Insulation Height	Insulation Height	Contact Material	Contact Type	Number of Positions Loaded	Style	Contact Shape	Fastening Type	Number of Positions	Row Spacing - Mating	Row Spacing - Mating	Row Spacing - Mating [x]	Row Spacing - Mating [x]
Hirose Electric USA, Inc. A3E-50PA-2DSA(71)	Solder	0.118 in	3 mm	2	Keying Slot	Black	Header	Gold	0.079 in	2 mm	12 V	0.203 Ám	8 Áin	Tin	UL94 V-0	2 çm	78.7 çin	85 °C	-55 °C	Shrouded - 4 Wall	0.5 A	Nylon Polyamide (PA)	Through Hole	0.31 in	7.87 mm	Brass	Male Pin	All	Board to Board Cable	Square	Push-Pull	50	0.079 in	2 mm
Hirose Electric USA, Inc. A3E-50PA-2DSA	Solder	0.118 in	3 mm	2	Keying Slot	Black	Header	Gold	0.079 in	2 mm	12 V	0.203 Ám	8 Áin	Tin	UL94 V-0	2 çm	78.7 çin	85 °C	-55 °C	Shrouded - 4 Wall	0.5 A	Nylon Polyamide (PA)	Through Hole	0.31 in	7.87 mm	Brass	Male Pin	All	Board to Board Cable	Square	Push-Pull	50	0.079 in	2 mm
Hirose Electric USA, Inc. A3E-50PA-2DSA(51)	Solder	0.118 in	3 mm	2		Black	Header	Gold	0.079 in	2 mm	125 VAC				UL94 V-0			85 °C	-55 °C	Shrouded - 4 Wall	0.5 A	Nylon Polyamide (PA)	Through Hole	0.31 in	7.87 mm	Brass	Male Pin	All	Board to Board Cable	Square	Push-Pull	50			2.54 mm	0.1 in

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Description

General part information

A3E-50PA Series

Connector Header Through Hole 50 position 0.079" (2.00mm)
